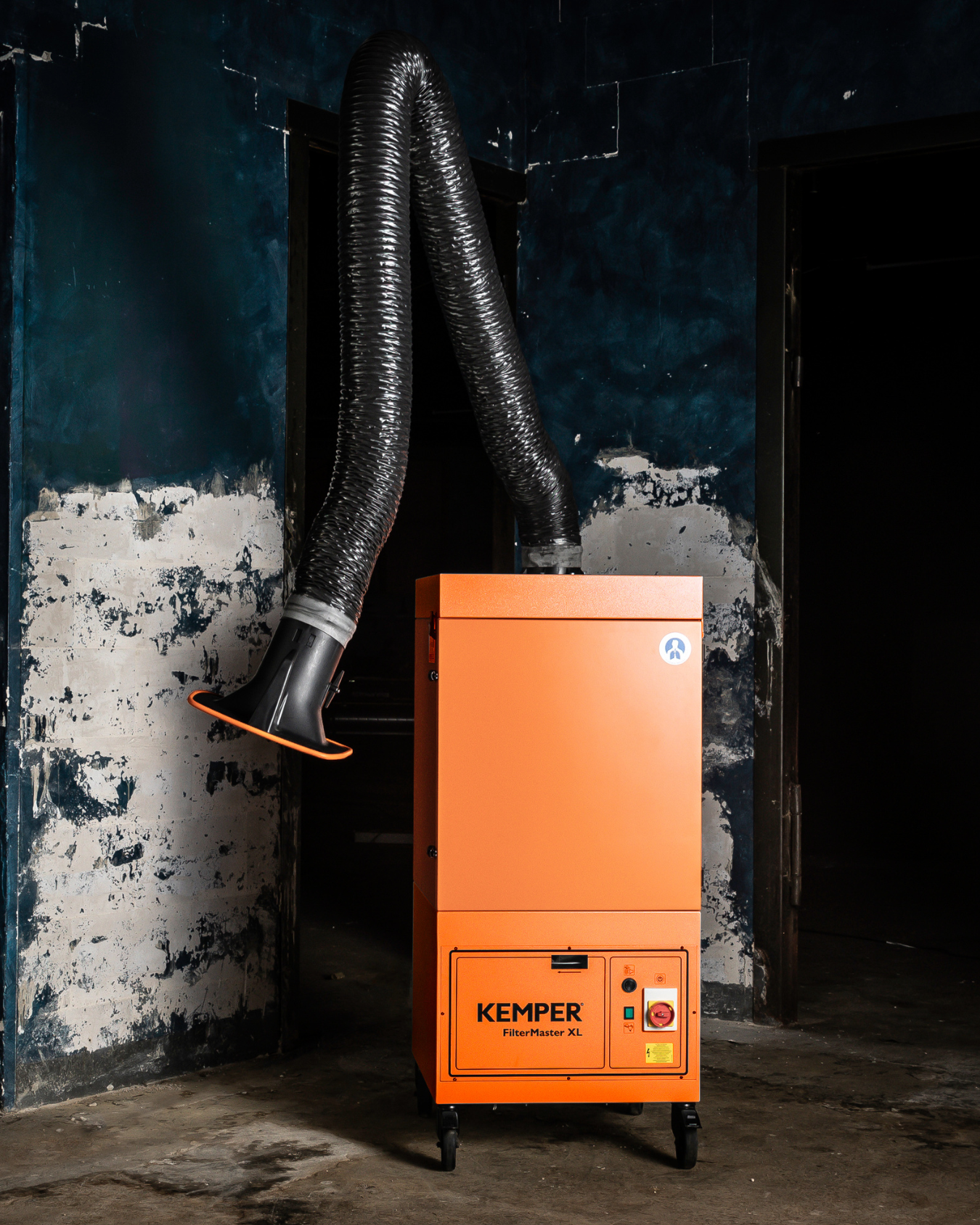

FilterMaster XL Fume Extraction Filter Unit
Item No.:
62100102
Regular use
,
Non-stop operation
Laser
,
MIG/MAG
,
Stick welding
Steel
,
Aluminum
,
Stainless steel
Suction and filter unit for welding smoke extraction as a basic model with cleanable filter, W3 IFA certified
- Suitable for all materials, including high-alloy steel
- High levels of smoke and particles
- Non-stop operation
€5,352.00* plus VAT
Extraction and filtration for welding fumes as a basic model with cleanable filter, W3 IFA certified
A functional extraction filter unit with timed, automatic filter cleaning system for high levels of smoke and dust and permanent use. The KemTex® ePTFE membrane filter cartridge for ultra-fine dust particles separates particles even below 0.1 µm. Due to the W3/IFA Certification it is also suitable for use in processing chromium-nickel steel.
Automatic filter cleaning for maximum performance
Efficient in continuous operation and equipped with high filter performance. The highlights at a glance:
- High efficiency due to automatic filter cleaning

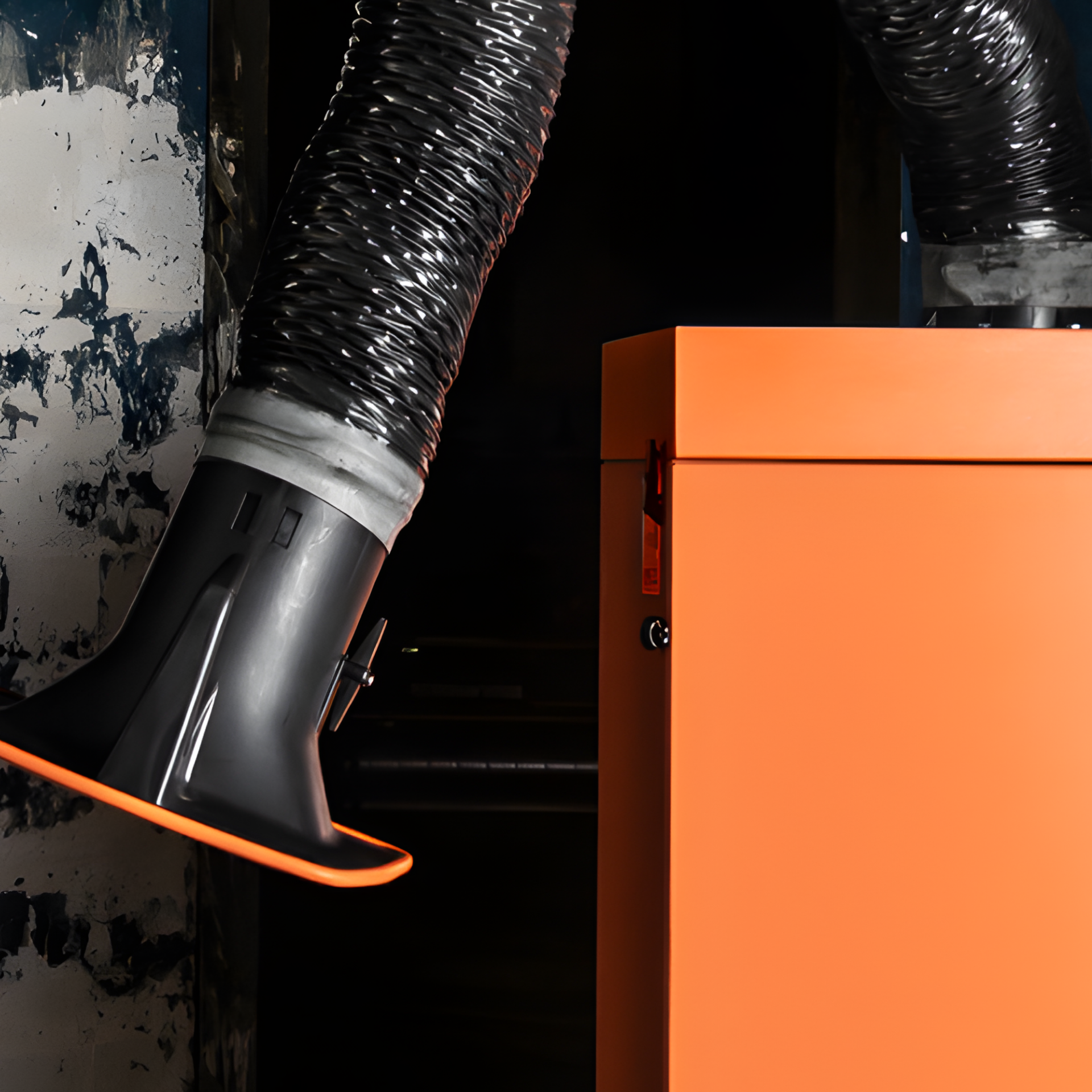

- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
- Best health protection for employees by use of KemTex® ePTFE filter cartridge with surface filtration
- Safe operation by rotation field control
| Technical data | |
|---|---|
| Dimensions | |
| Weight in kg: | 155 |
| Dimensions (depth) in mm: | 816 |
| Dimensions (width) in mm: | 643 |
| Dimensions (height) in mm: | 1457 |
| Filter | |
| Filter stages: | 1 |
| Filter area in m²: | 10 |
| Separation efficiency in % ≥: | 99.9 |
| Technology | |
| Motor power in kW: | 1.5 |
| Rated current in A: | 3.2 |
| Sound pressure level in dB(A): | 69 |
| Compressed air supply in bar: | 5-6 |
| Performance | |
| Max. fan capacity in m³/h: | 3000 |
| Extraction capacity in m³/h: | 1000 |
| Max. negative pressure in Pa: | 3000 |
| Connections | |
| Extraction arm diameter in mm: | 150 |
| Number of extraction arms: | 1 |
| Extraction arm length in m: | 4 |
| Power supply: | 3 x 400 V / 50 Hz |
