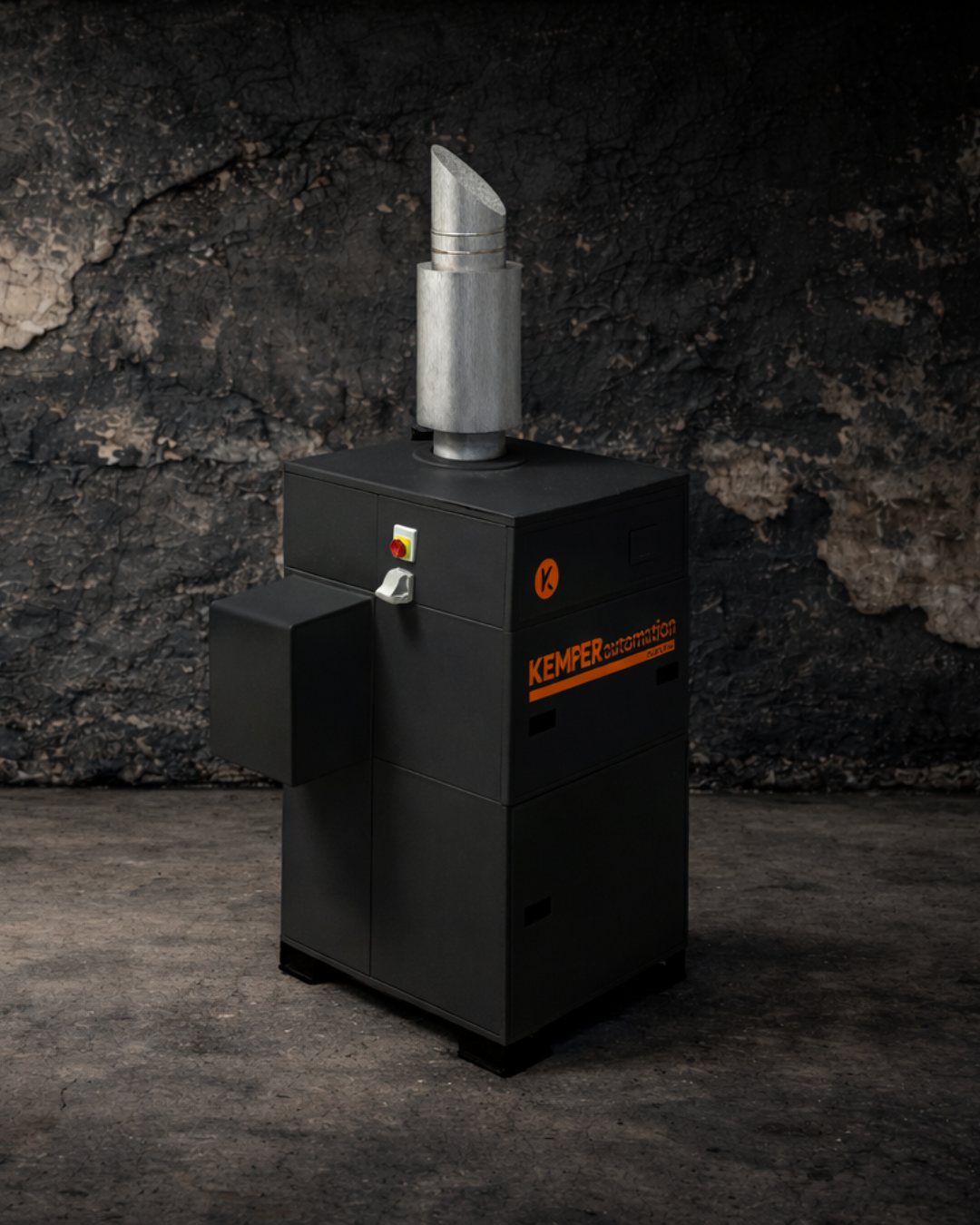

ArcFil Pro
Specifically suited for robot welding applications
- High levels of smoke and dust
- Welding and grinding shops
- Training centres and robotic welding lines
- Laser, plasma and flame cutting systems
- Can be installed outdoors
Price on request
The ArcFil Pro filter system of the Automation-Line can be set up and put into operation in just a few seconds thanks to its compact design. Thanks to the high and effective extraction capacity, it is particularly suitable for robot welding applications of various processes, such as laser welding. Thanks to the W3 certification (DIN EN ISO 21904) of the ArcFil Pro, it is possible to feed the filtered air directly back into the production hall, which makes it particularly energy efficient. The unit is connected directly to an extraction hood or cabin that covers the entire working area of the robot. This is essential to prevent the cutting fume from spreading into the production hall.
Powerful, efficient and safe – modern filtration technology for the highest demands. The following advantages demonstrate how cost-effectiveness, comfort and reliable continuous operation work together perfectly.
- Contamination-free dust collection due to compressed air fixation of dust collection containers
- Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
- Little noise emission due to a low noise level
- Considerable energy cost savings by using the automatic extraction volume control
- Convenient operation due to intelligent control via touch screen with diagnostic system
- Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
- Recirculation is possible even when using chrome-nickel steel thanks to W3 certification
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 1 |
| Separation efficiency ≥: | 99.9 |
| Filter area in ft²: | 108 |
| Number of filter elements: | 9 |
| Total filter area in ft²: | 969 |
| Technology | |
| Motor power in hp: | 7.4 |
| Sound pressure level in dB(A): | 65 |
| Rated current in A: | 10.7 |
| Performance | |
| Extraction capacity in cfm: | 5 |
| Dimensions | |
| Weight in lbs: | 1742 |
| Dimensions (depth) in inches: | 73 |
| Dimensions (width) in inches: | 56 |
| Dimensions (height) in inches: | 83 |
| Connections | |
| Air inlet in inches: | 18 |
| Air outlet in inches: | 18 |
