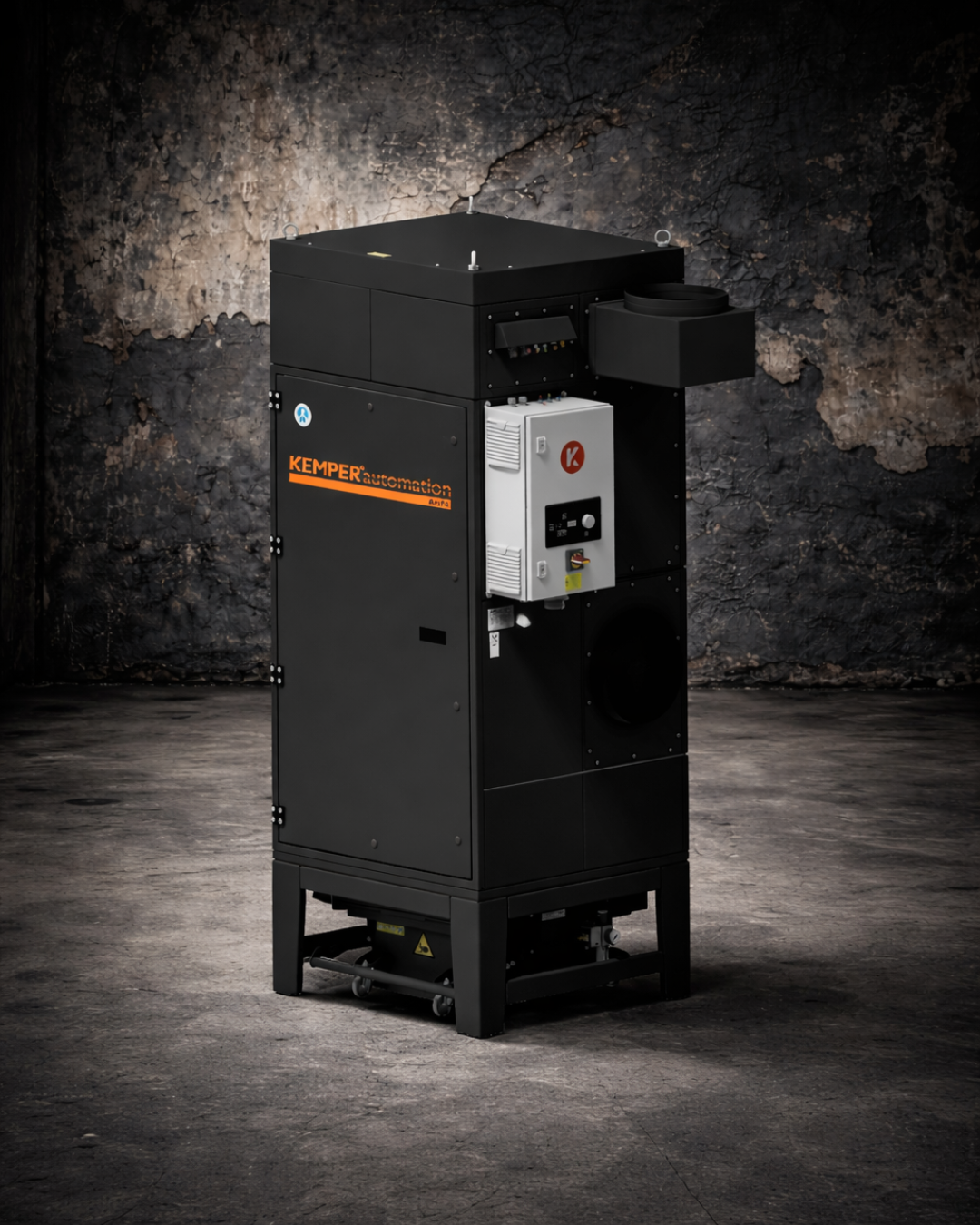

ArcFil
Specifically suited for robot welding applications
- Medium levels of smoke and dust
- Specifically suited for robot welding applications
Price on request
The ArcFil filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. Thanks to the high and effective extraction capacity, it is particularly suitable for robot welding applications of various processes, such as laser welding. The unit is connected via various duct connection options directly to an extraction hood or laser cabin that covers the entire working area of the robot. This is essential to prevent the cutting fume from spreading into the production hall.
Efficient, reliable, and future-ready – intelligent system technology ensures maximum operational safety while optimizing energy consumption. Key benefits at a glance:

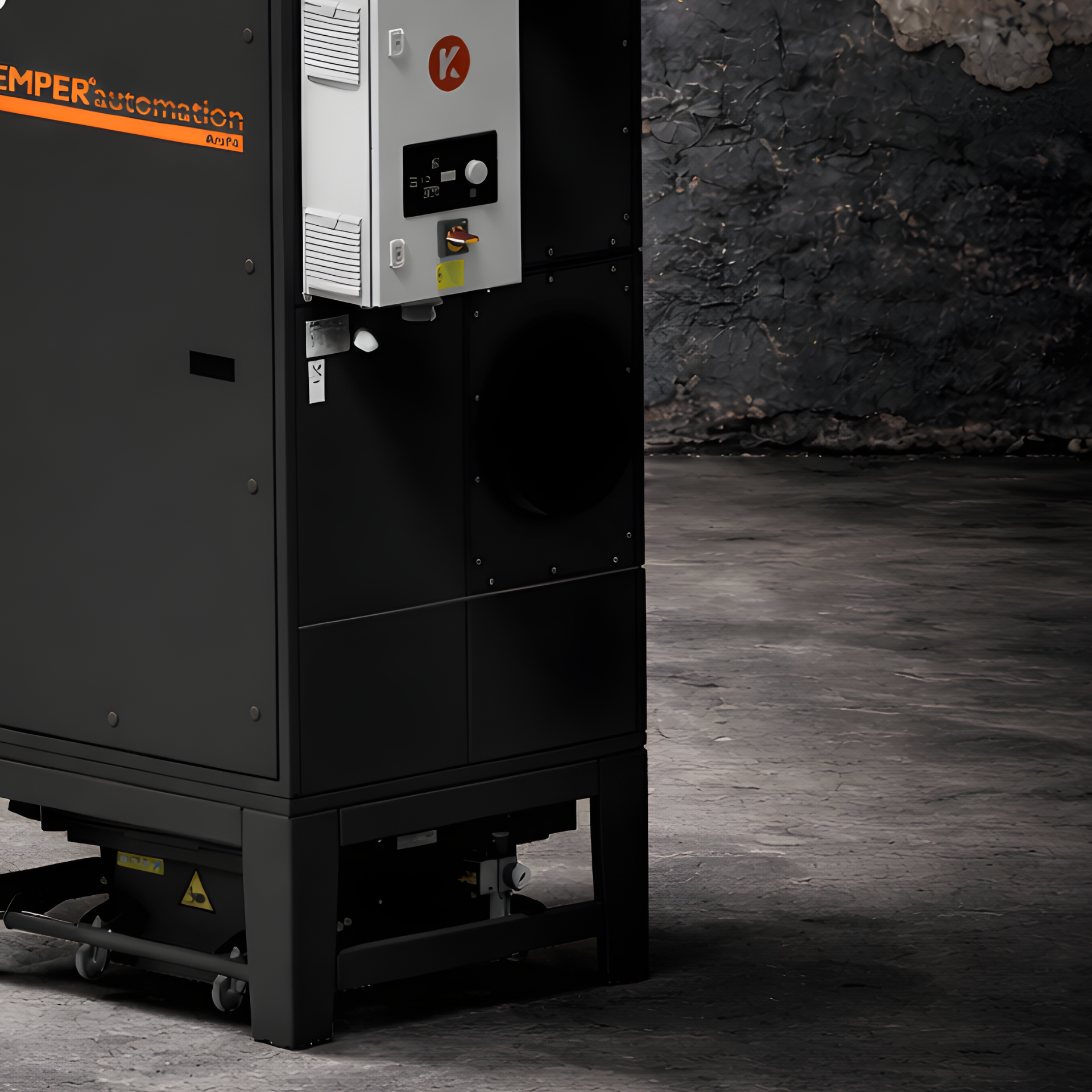

- Contamination-free dust collection due to lever fixing of the dust collection container
- Considerable energy cost savings by using the optional automatic volume control through demand-based extraction capacity regulation
- Uninterrupted continuous operation due to automatic, demand-oriented filter cleaning
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 1 |
| Filter area in ft²: | 162 |
| Separation efficiency ≥: | 99.9 |
| Number of filter elements: | 3 |
| Total filter area in ft²: | 484 |
| Technology | |
| Motor power in hp: | 5 |
| Sound pressure level in dB(A): | 72 |
| Rated current in A: | 7.5 |
| Performance | |
| Extraction capacity in cfm: | 3 |
| Connections | |
| Air inlet in inches: | 14 |
| Air outlet in inches: | 14 |
| Dimensions | |
| Dimensions (depth) in inches: | 38 |
| Dimensions (width) in inches: | 38 |
| Dimensions (height) in inches: | 104 |
