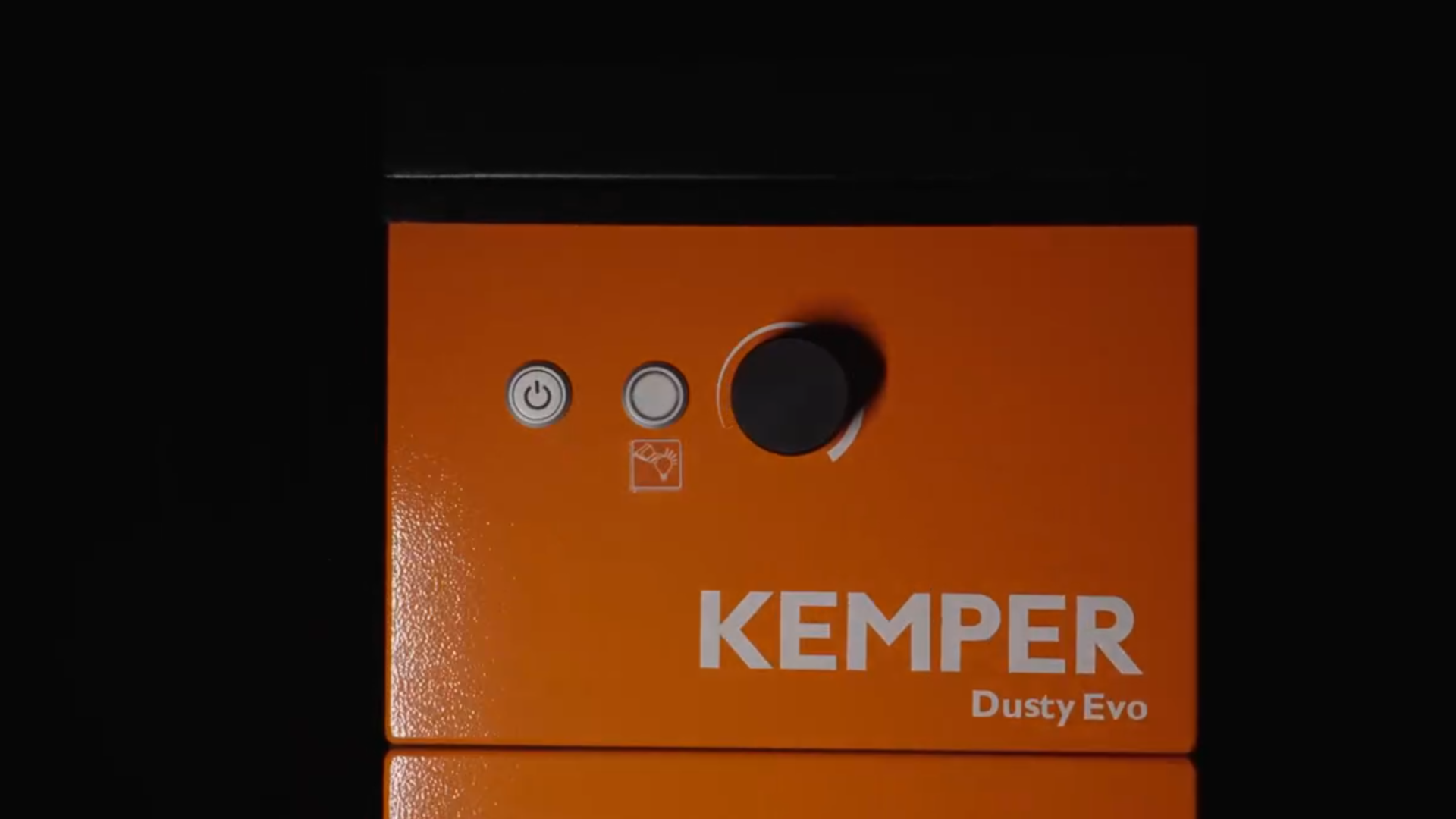

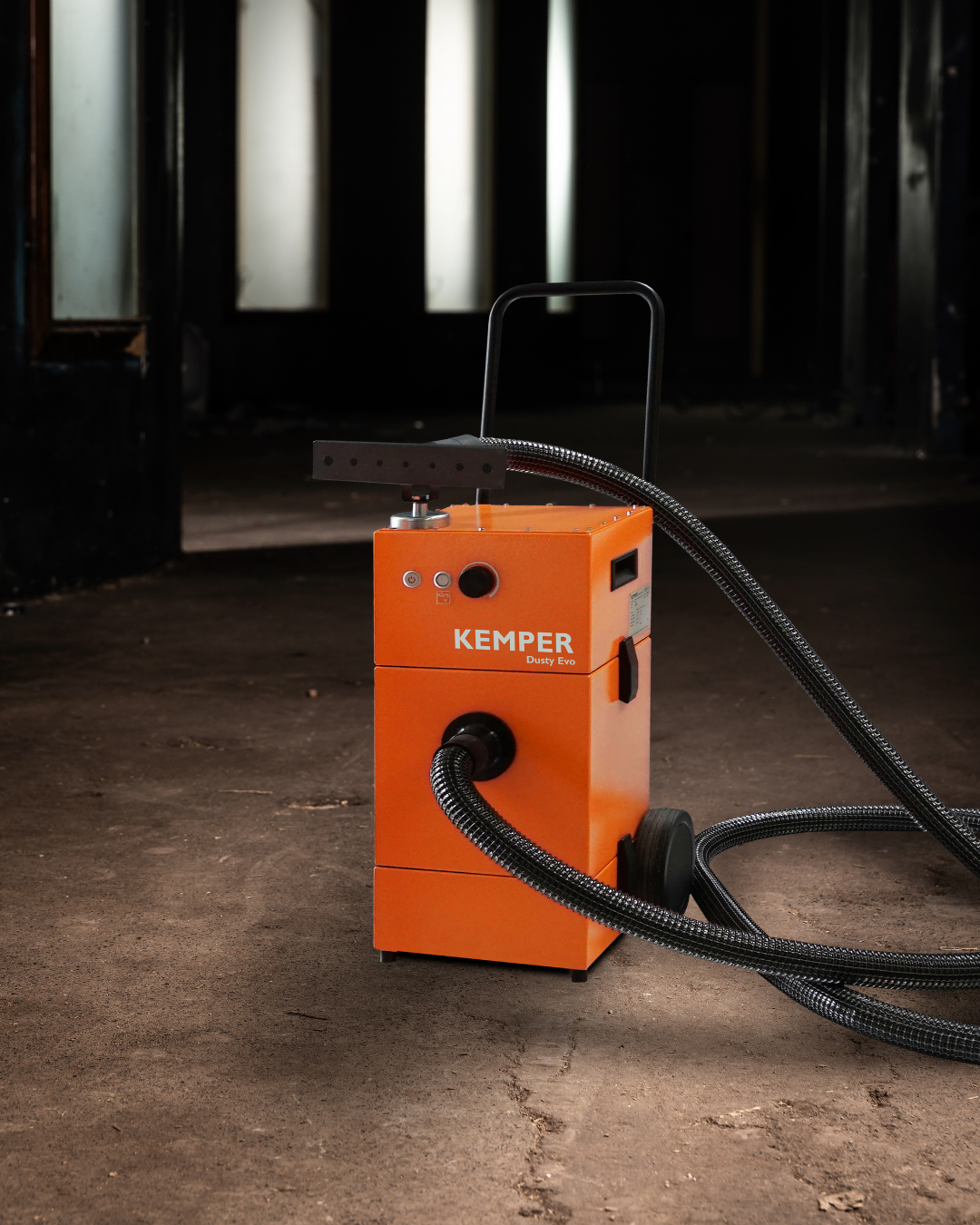

Dusty Evo High Vacuum Smoke Extraction Filter Unit
Lightweight high vacuum extraction unit with a cleanable filter
- Low to medium levels of smoke and dust
- Occasional use
- Nozzles, funnel and torch extraction
- Repair work
- Alternating work places
Price on request
Dusty Evo is very easy to use and a must for every workshop. With manual filter cleaning for fume extraction on extraction torch, slot and funnel nozzles. Thanks to the large handle the unit is also suitable for mobile use on construction sites and repair work. It is hardly larger than a small trolley.
Compact, powerful and versatile – designed for clean air in every welding application. The key advantages at a glance:
- High extraction capacity due to two high performance turbines
- Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
- Easy to transport on site or confined spaces due to rigid handle and recessed grips
- For mobile use due to light weight
- Optimal adjustment to the welding process with stepless speed control
| Technical data | |
|---|---|
| Dimensions | |
| Weight in lbs: | 67 |
| Dimensions (depth) in inches: | 19 |
| Dimensions (width) in inches: | 16 |
| Dimensions (height) in inches: | 40 |
| Filter | |
| Filter stages: | 1 |
| Filter area in ft²: | 15 |
| Separation efficiency ≥: | 99.9 |
| Technology | |
| Motor power in hp: | 2.2 |
| Rated current in A: | 8.7 |
| Sound pressure level in dB(A): | 74 |
| Performance | |
| Extraction capacity in cfm: | 153 |
| Min. extraction capacity in cfm: | 153 |
| Connections | |
| Connection nozzle Ø in inches: | 2 |
