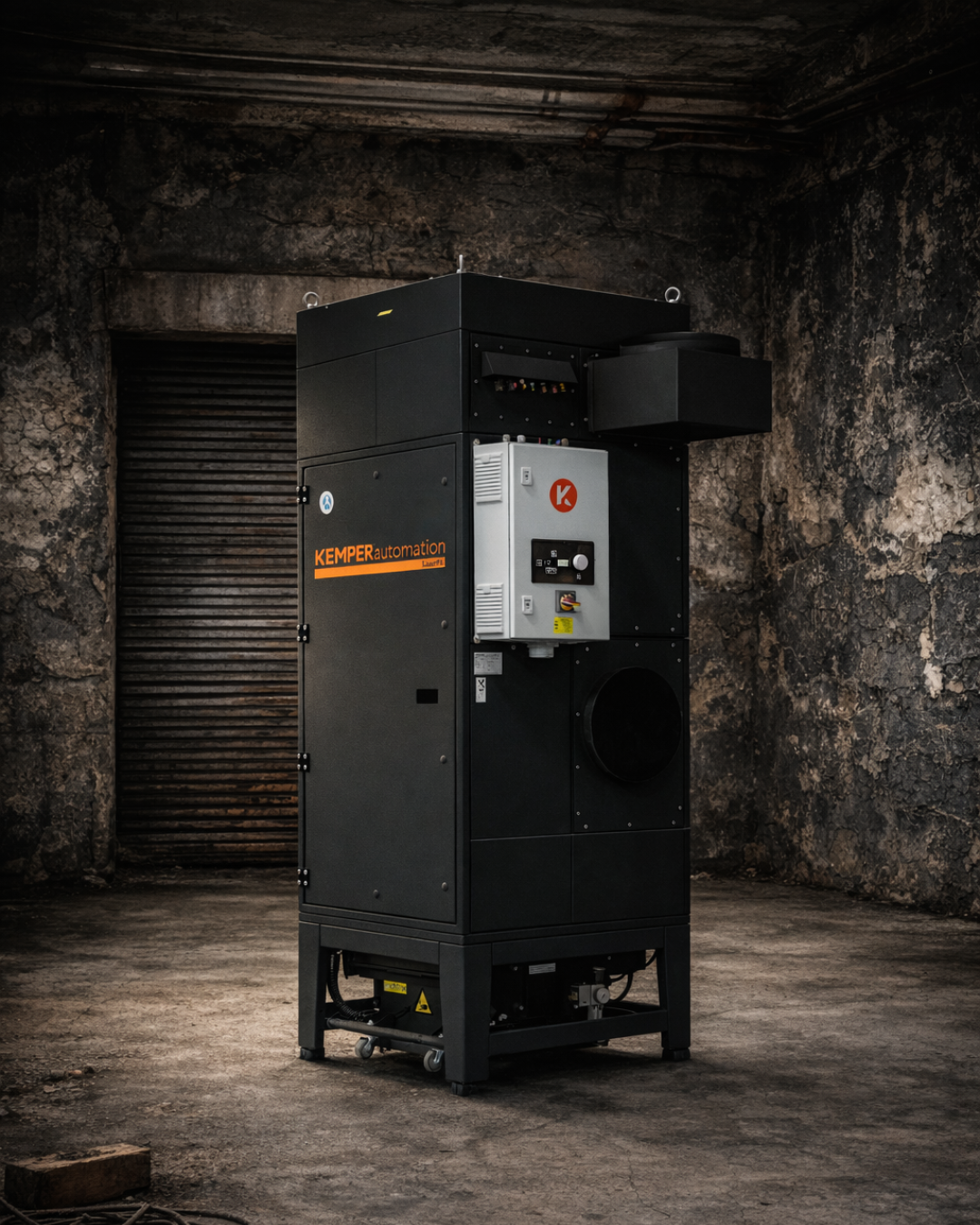

LaserFil
Specifically suited for laser cutting processes
- Medium levels of smoke and dust
- Specifically suited for laser cutting processes
Price on request
The LaserFil filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface is optimally adapted to the laser cutting process and enables an effective extraction capacity. The unit is connected via various duct connection options directly to a laser cabin that covers the entire working area. This is essential to prevent the cutting fume from spreading into the production hall.
Efficient and reliable – for maximum performance with minimal energy consumption. Key benefits at a glance:
- Contamination-free dust collection due to lever fixing of the dust collection container
- Considerable energy cost savings by using the optional automatic volume control through demand-based extraction capacity regulation
- Uninterrupted continuous operation due to automatic, demand-oriented filter cleaning
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 0 |
| Number of filter elements: | 4 |
| Separation efficiency ≥: | 99.9 |
| Filter area in ft²: | 323 |
| Total filter area in ft²: | 646 |
| Technology | |
| Motor power in hp: | 10.1 |
| Sound pressure level in dB(A): | 76 |
| Rated current in A: | 13.7 |
| Performance | |
| Extraction capacity in cfm: | 3 |
| Dimensions | |
| Weight in lbs: | 1334 |
| Dimensions (depth) in inches: | 38 |
| Dimensions (width) in inches: | 38 |
| Dimensions (height) in inches: | 104 |
| Connections | |
| Air inlet in inches: | 14 |
| Air outlet in inches: | 14 |
