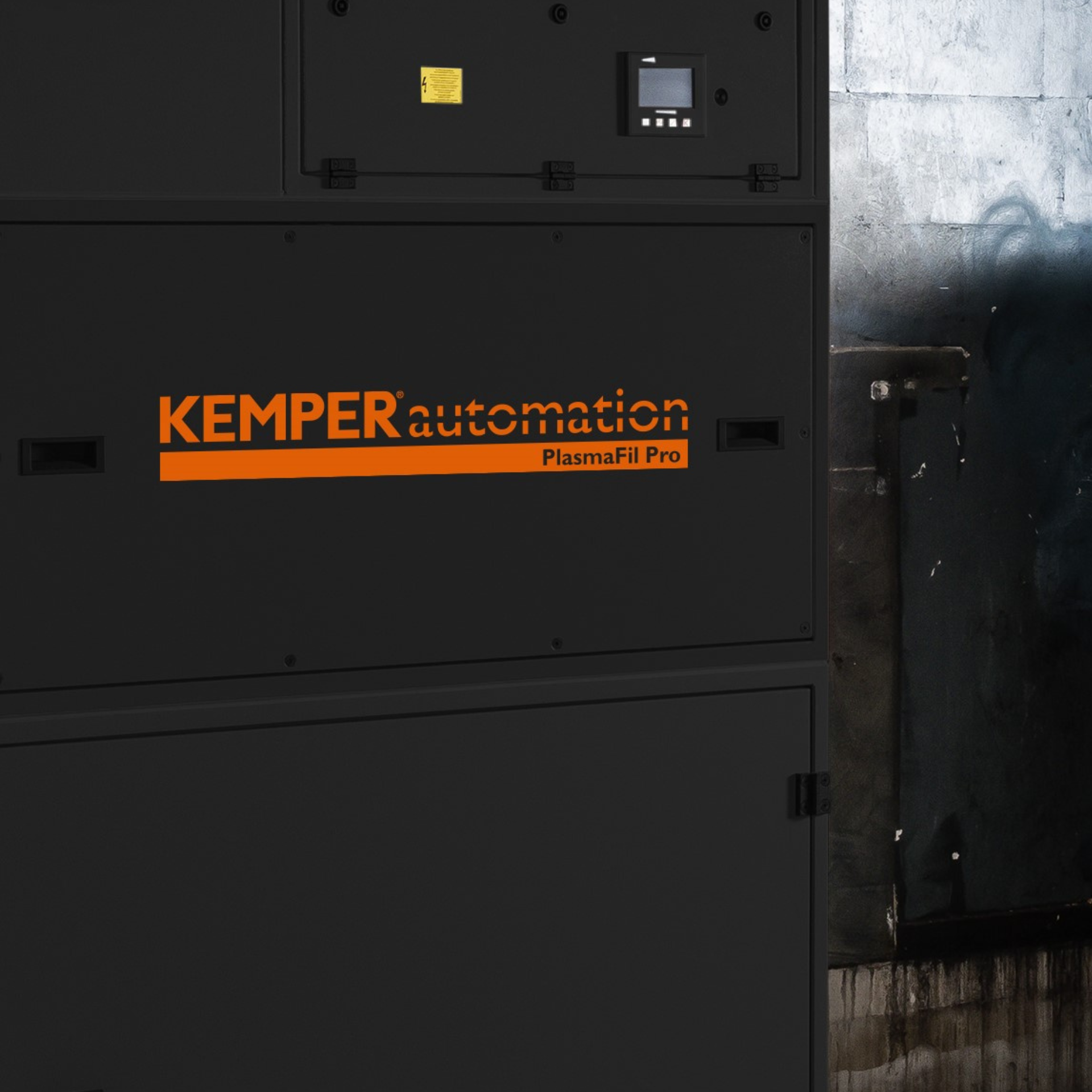

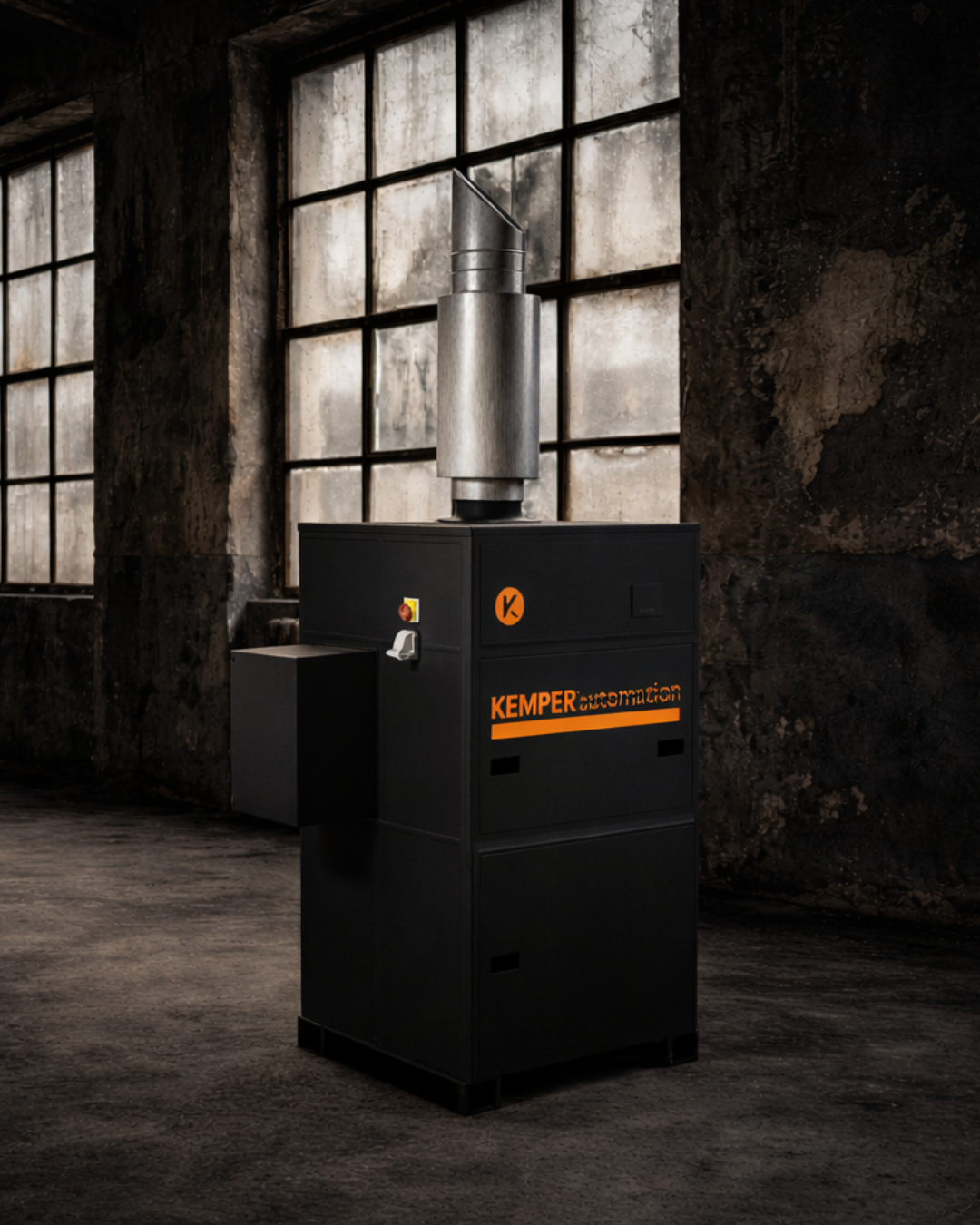

PlasmaFil Pro
Specifically suited for plasma or flame cutting processes
- High levels of smoke and dust
- Welding and grinding shops
- Training centres and robotic welding lines
- Laser, plasma and flame cutting systems
- Can be installed outdoors
- Specifically suited for plasma or flame cutting processes
Price on request

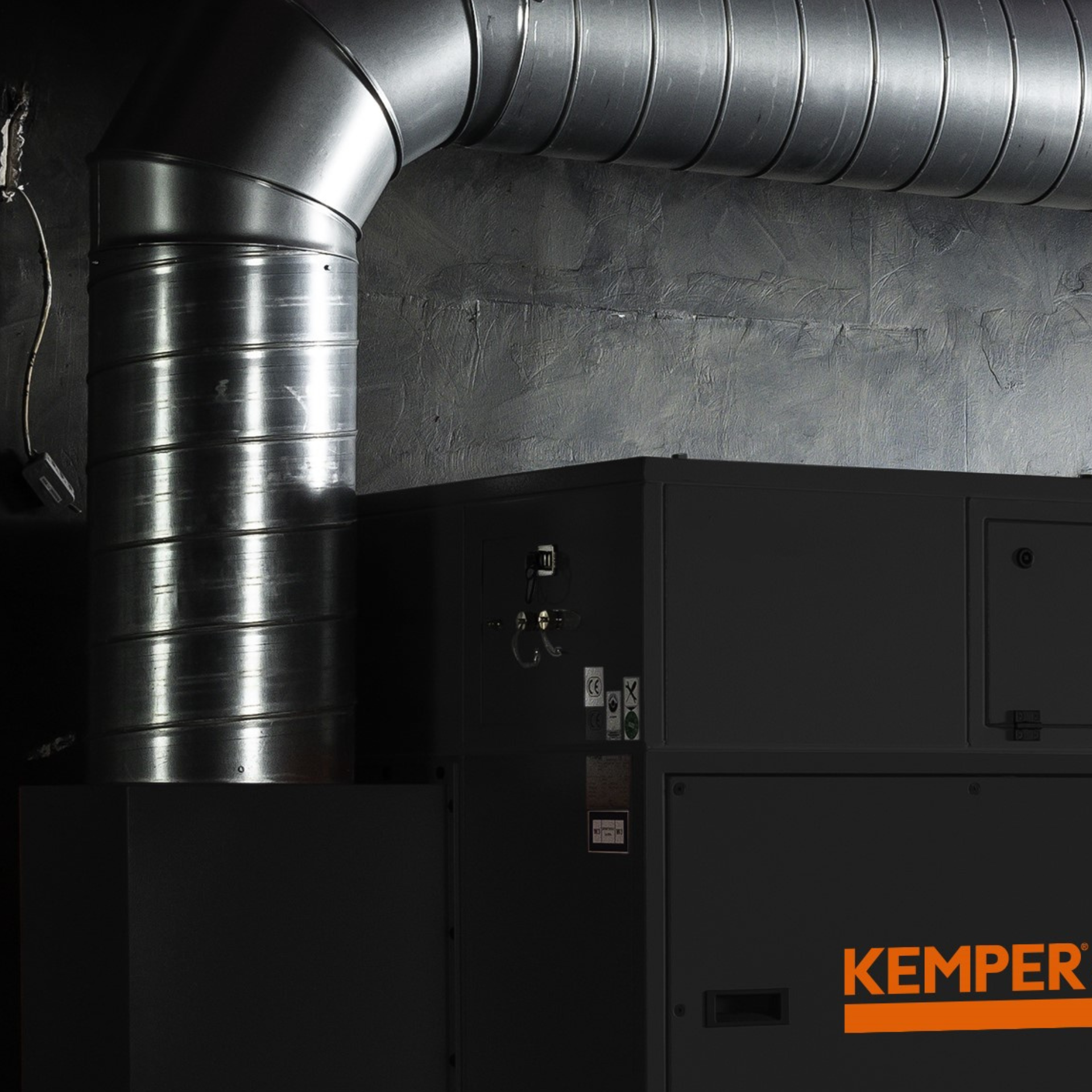

The PlasmaFil Pro filter system of the Automation-Line can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface enables a long service life, even with large amounts of dust. This makes it particularly suitable for extraction during plasma or flame cutting processes. The filter unit is connected to the plasma or flame cutting table by means of a ducting system. The system is flexible in design and can be set up in many different locations. Thanks to the W3 certification (DIN EN ISO 21904) of the PlasmaFil Pro, it is possible to feed the filtered air directly back into the production hall, which makes it particularly energy-efficient.
Efficient, safe, and ready to use – for maximum system uptime and optimal health protection. Key benefits at a glance:
- Contamination-free dust collection due to compressed air fixation of dust collection containers
- Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
- Little noise emission due to a low noise level
- Quick and simple set up, delivered ready to plug in with forklift pockets and lifting eyes
- Considerable energy cost savings by using the automatic extraction volume control
- Convenient operation due to intelligent control via touch screen with diagnostic system
- Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
- Recirculation is possible even when using chrome-nickel steel thanks to W3 certification
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 1 |
| Separation efficiency ≥: | 99.9 |
| Filter area in ft²: | 108 |
| Number of filter elements: | 12 |
| Total filter area in ft²: | 1292 |
| Technology | |
| Motor power in hp: | 7.4 |
| Sound pressure level in dB(A): | 65 |
| Rated current in A: | 10.7 |
| Performance | |
| Extraction capacity in cfm: | 10 |
| Dimensions | |
| Weight in lbs: | 1786 |
| Dimensions (depth) in inches: | 73 |
| Dimensions (width) in inches: | 94 |
| Dimensions (height) in inches: | 83 |
| Connections | |
| Air inlet in inches: | 18 |
| Air outlet in inches: | 18 |
