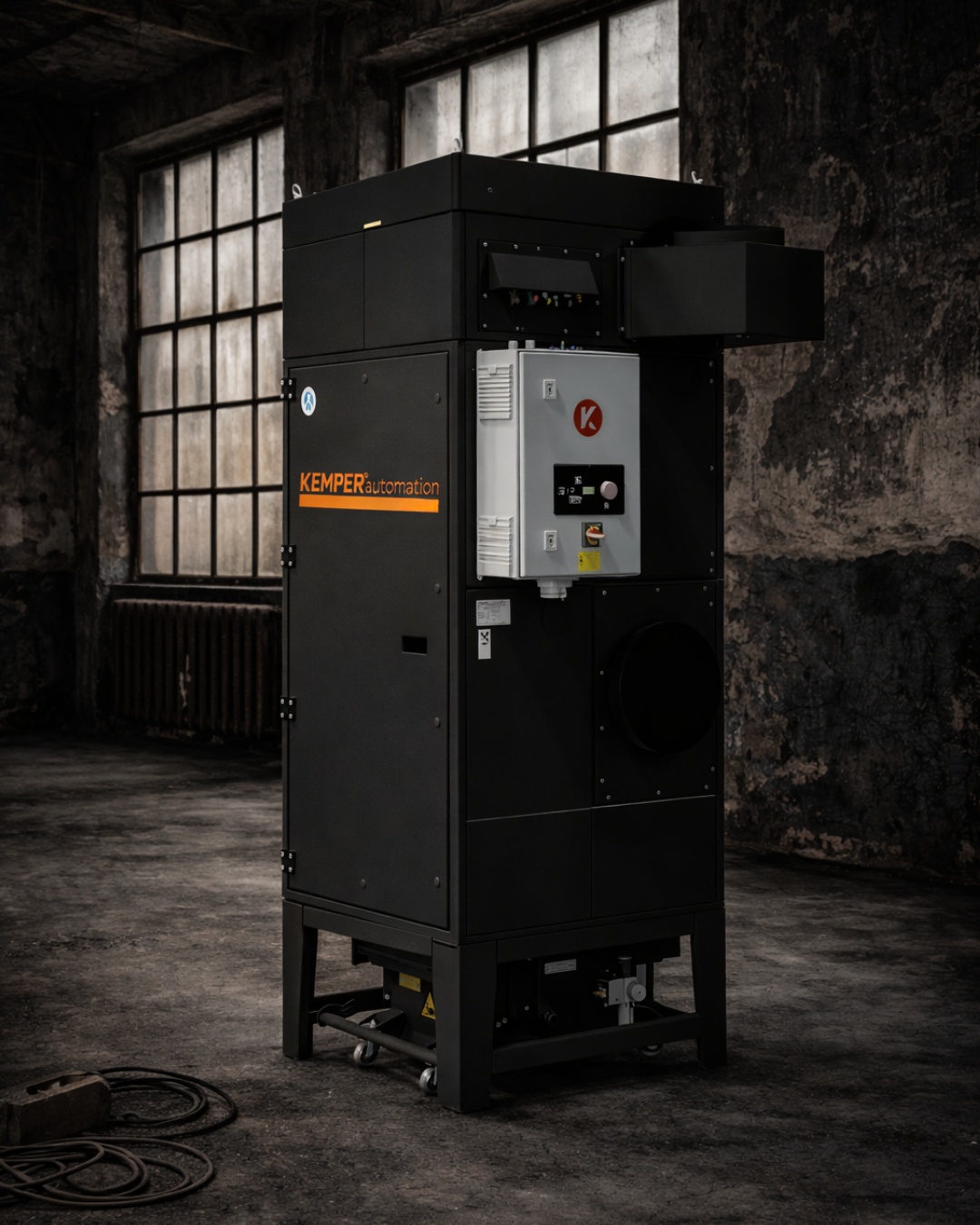

PlasmaFil
Specifically suited for plasma or flame cutting processes
- Medium levels of smoke and dust
- Specifically suited for plasma or flame cutting processes
- IoT-enabled with the KEMPER Connect Bridge
Price on request
The PlasmaFil filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface enables a long service life, even with large amounts of dust. This makes it particularly suitable for extraction during plasma or flame cutting processes. Due to the different pipe connection options, the PlasmaFil can be tailored to the needs.
Efficient and reliable – for maximum performance with minimal energy consumption.
For greater transparency, the PlasmaFil can be retrofitted with the KEMPER Connect Bridge and integrated into the KEMPER Connect IoT platform. Relevant operating, status and maintenance data is recorded digitally and made available centrally. This allows you to monitor the condition of your filter system and identify maintenance requirements at an early stage.
The key benefits at a glance:
- Contamination-free dust collection thanks to the lever-secured dust collection containers
- Significant energy cost savings with the optional automatic airflow adjustment and demand-controlled extraction performance
- Uninterrupted continuous operation thanks to automatic, demand-based filter cleaning
- Retrofittable IoT integration with the KEMPER Connect Bridge
- Central overview of operating, status and maintenance data in KEMPER Connect
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 1 |
| Number of filter elements: | 4 |
| Separation efficiency in % ≥: | 99.9 |
| Filter area in ft²: | 162 |
| Total filter area in ft²: | 646 |
| Technology | |
| Motor power in hp: | 5.4 |
| Rated current in A: | 7.5 |
| Sound pressure level in dB(A): | 72 |
| Performance | |
| Extraction capacity in cfm: | 3 |
| Dimensions | |
| Weight in lbs: | 1232 |
| Dimensions (depth) in inches: | 38 |
| Dimensions (width) in inches: | 38 |
| Dimensions (height) in inches: | 104 |
| Connections | |
| Air inlet in inches: | 14 |
| Air outlet in inches: | 14 |
| Power supply: | 3 x 380 - 415 / 50 Hz |
