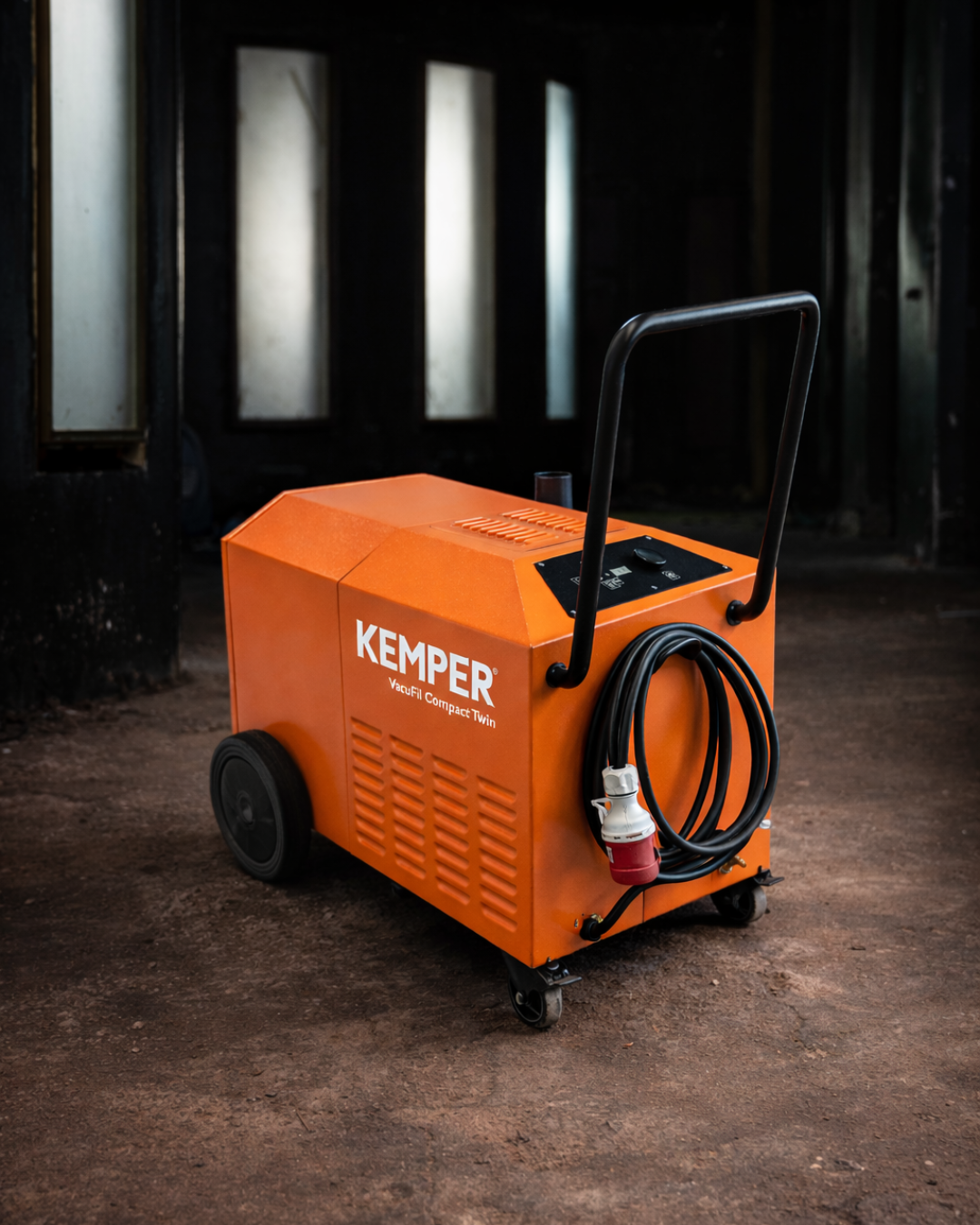

VacuFil Compact Twin
For permanent use with cleanable filter
- High levels of smoke and particles
- Regular use

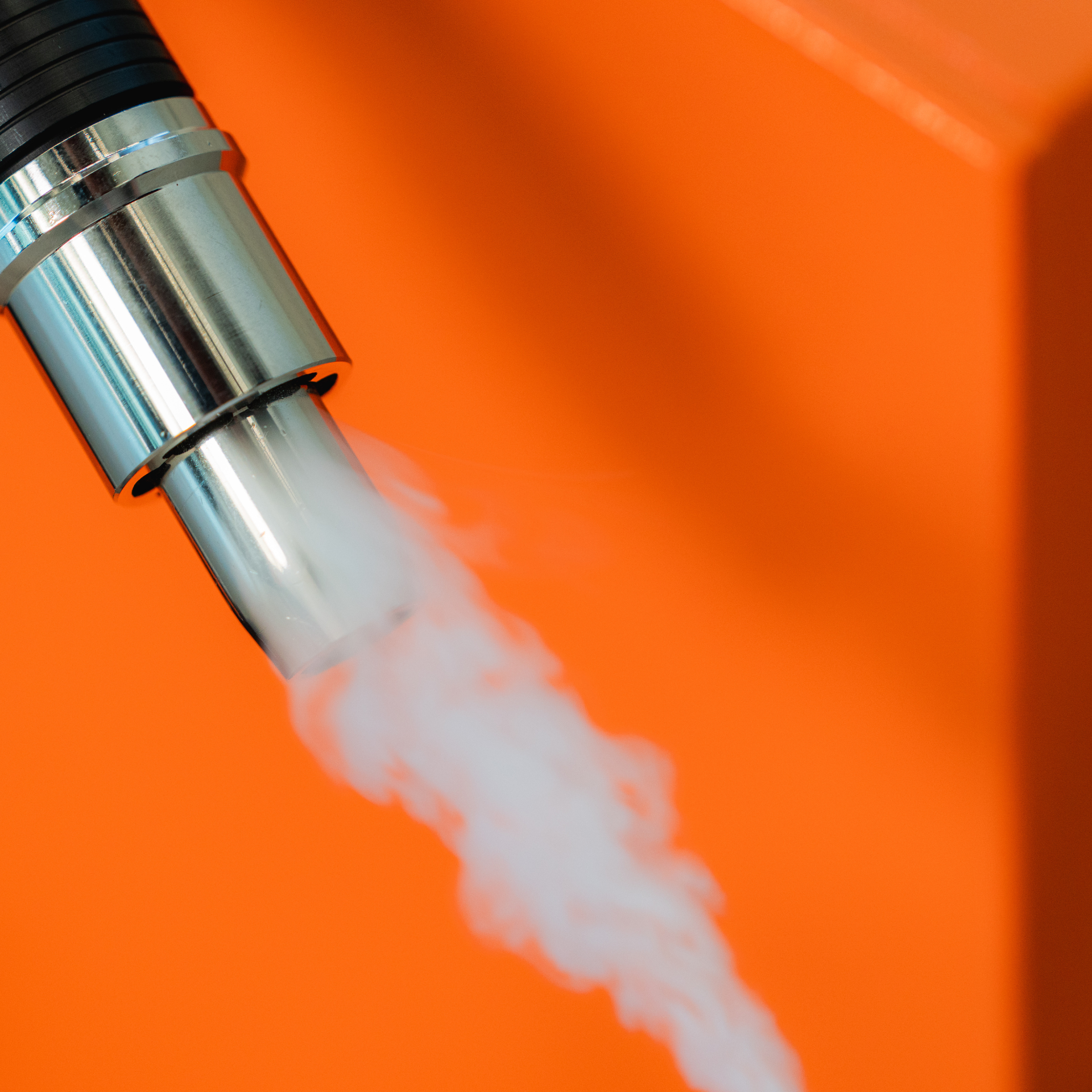

- Torch extraction

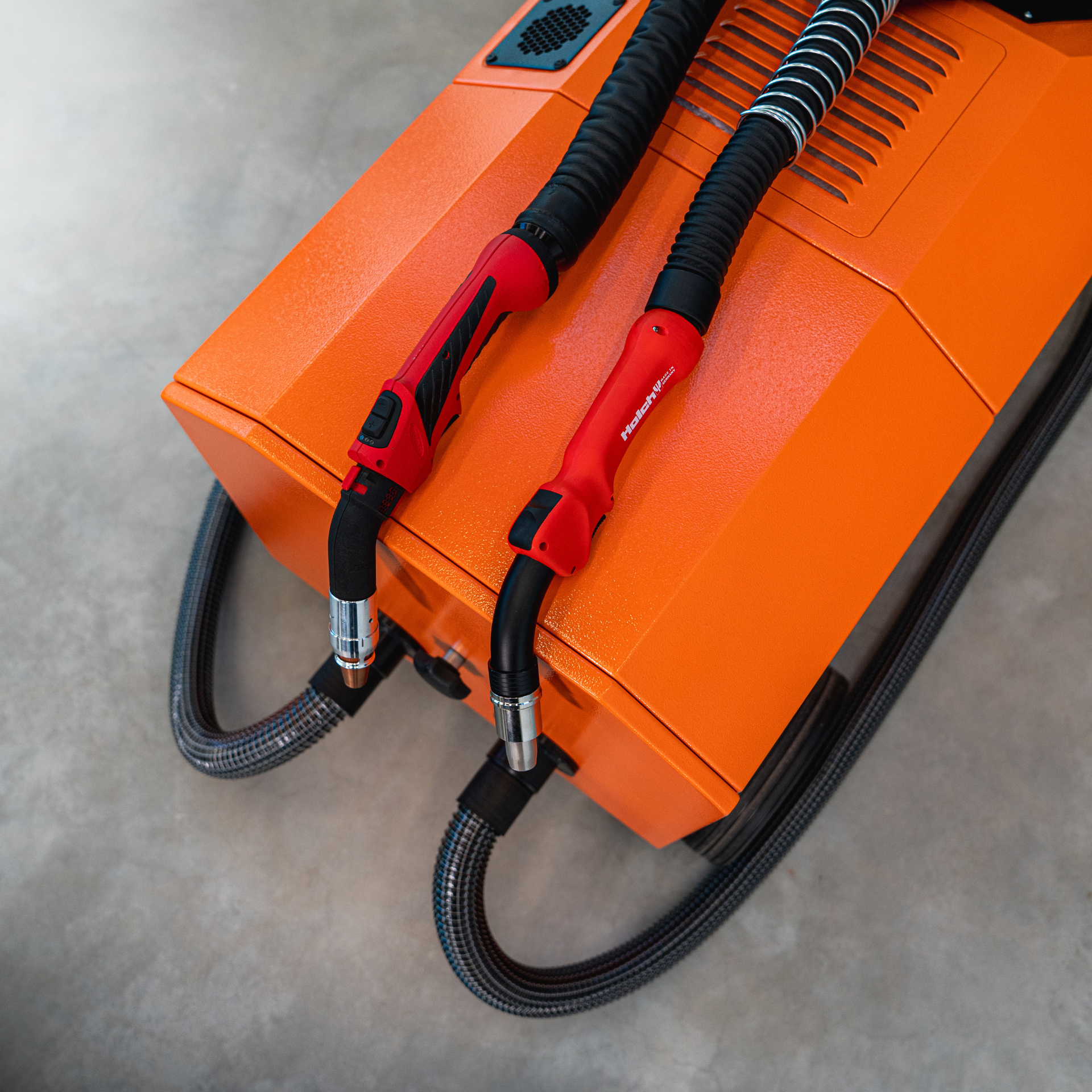

- For two work places
- Alternating work places
Price on request
The high vacuum extraction unit VacuFil Compact is designed for medium quantities of welding fumes and dust. It has a large disposable filter and comfortable one-button operation, even with gloves. Many additional features such as automatic air volume control are available. The side channel blower for negative pressure provides robust performance for industrial users.
Flexible, powerful and cost-effective – for reliable extraction in a wide range of applications. The following advantages at a glance:
- Stepless preselection of the extraction power for the use of various extraction torches

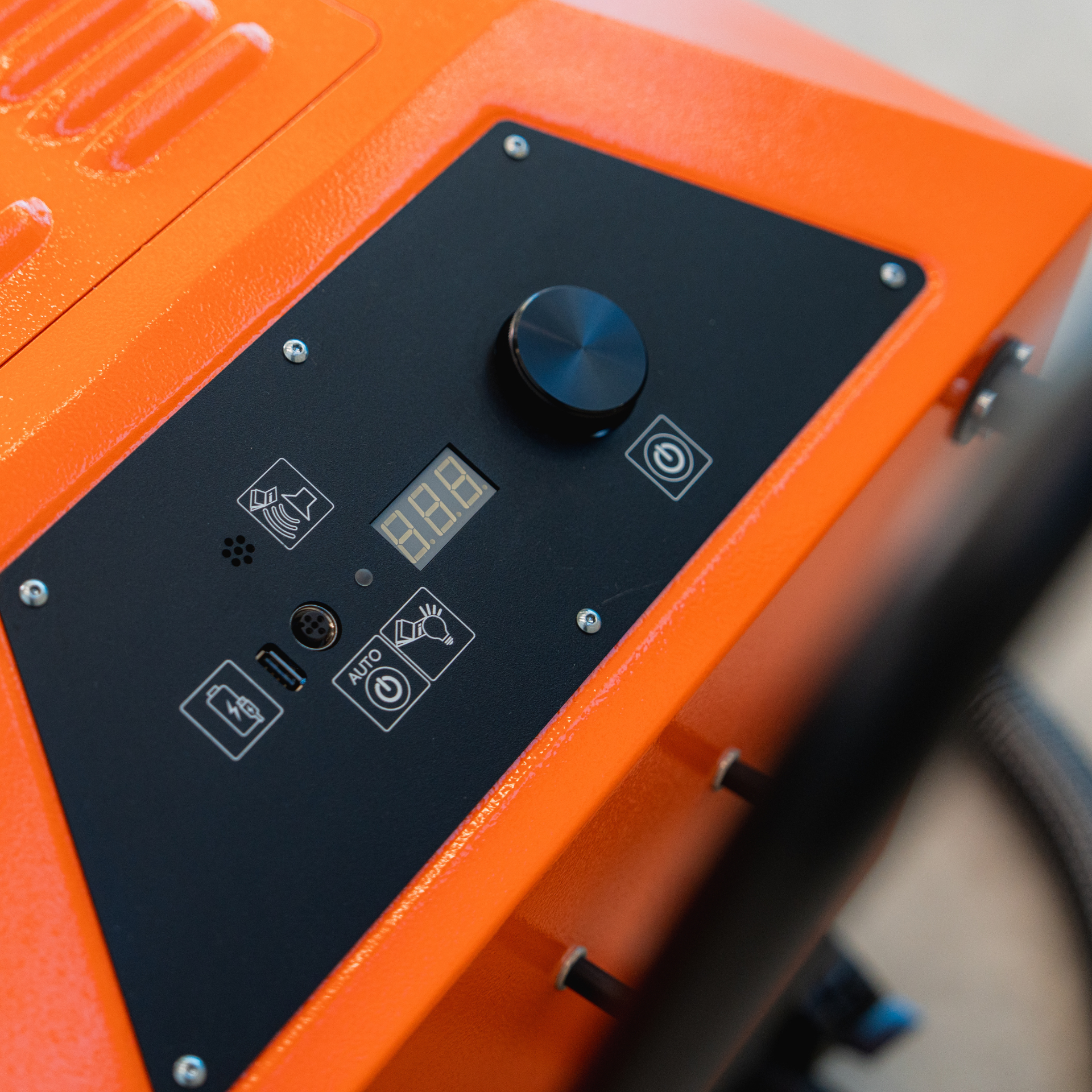

- Intuitive one-button operation, for use with gloves
- Outstanding price-performance ratio thanks to a wide range of additional features

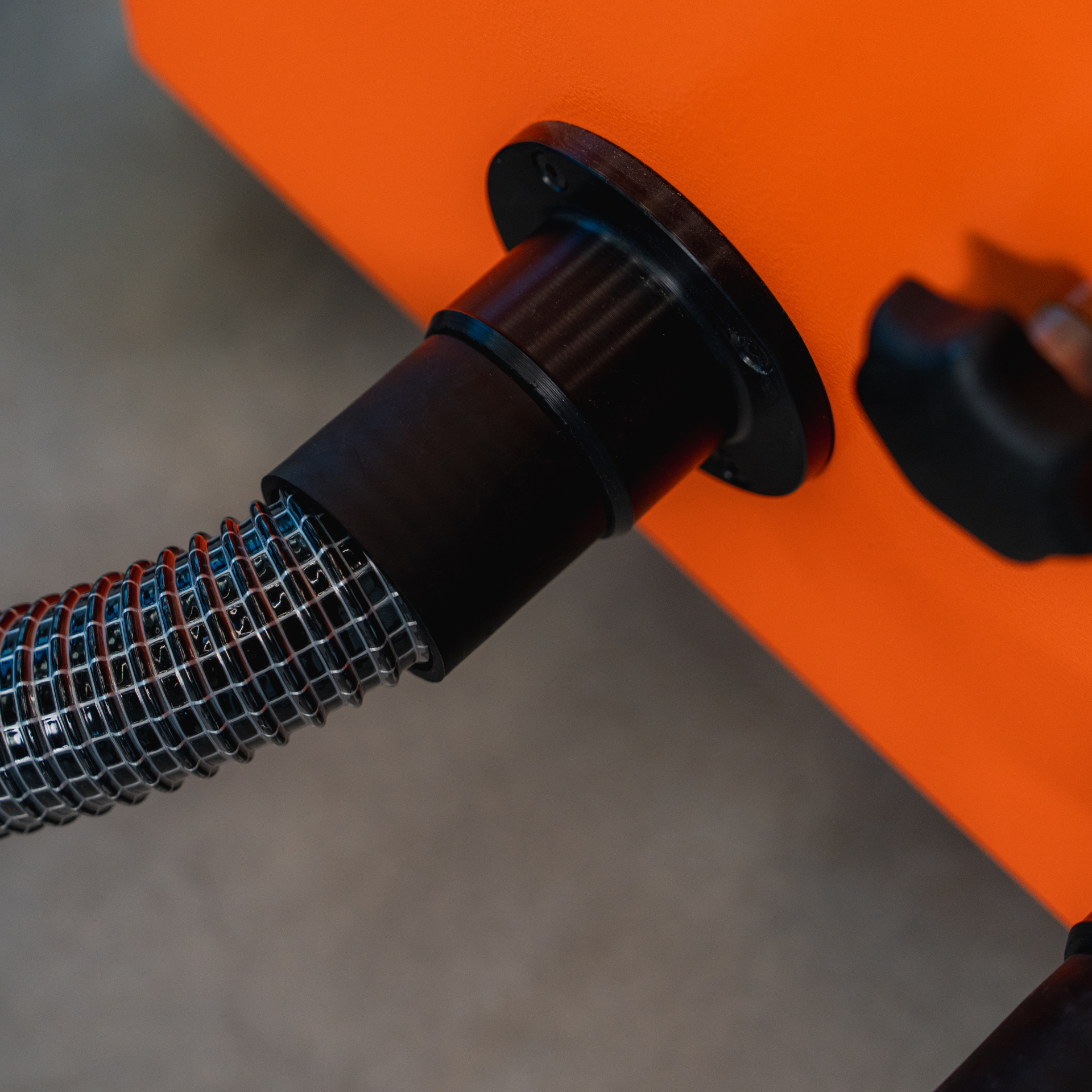

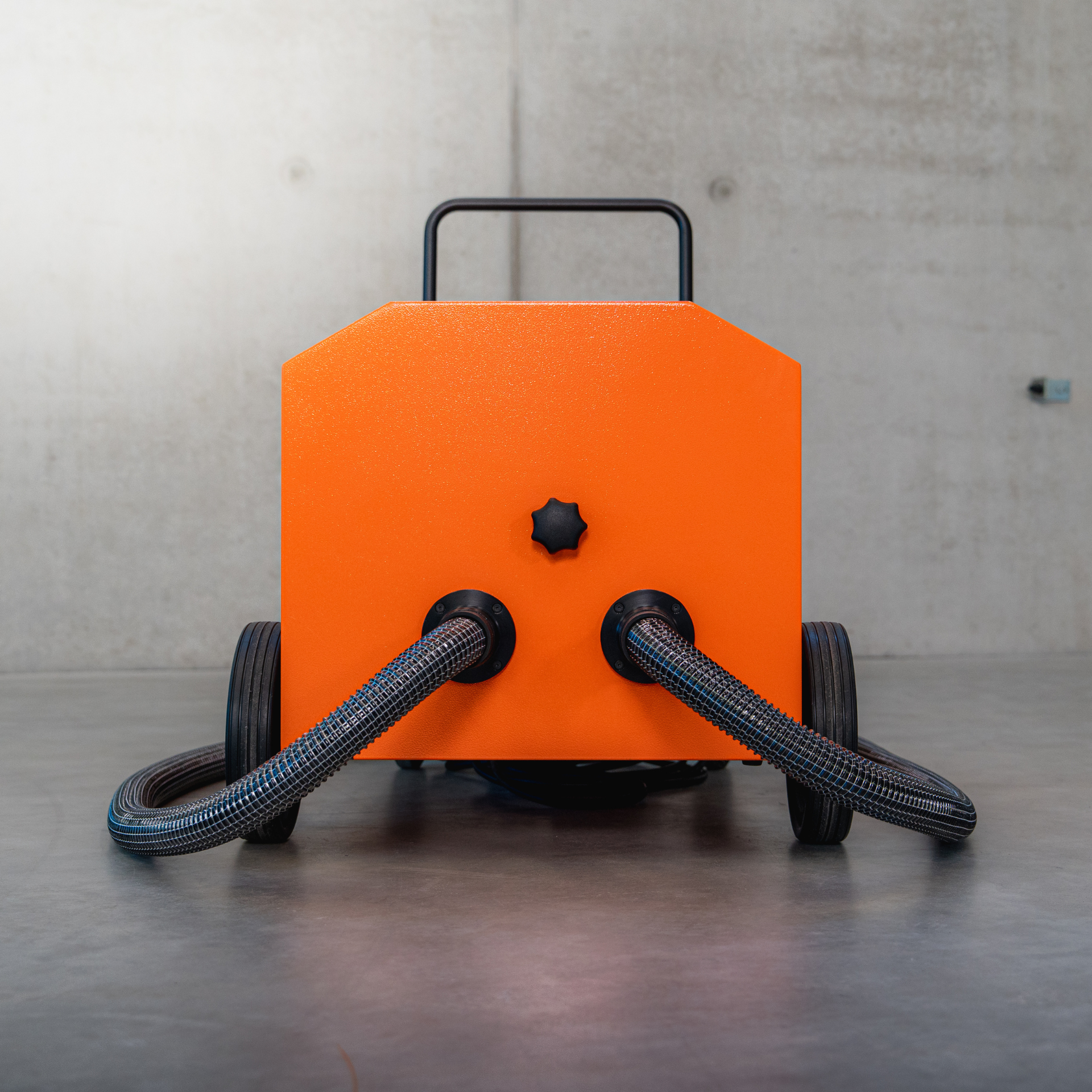

- High flexibility thanks to two connections with NW45/63mm each
- Extensions can be integrated via interface
| Technical data | |
|---|---|
| Dimensions | |
| Weight in lbs: | 205 |
| Dimensions (depth) in inches: | 40 |
| Dimensions (width) in inches: | 27 |
| Dimensions (height) in inches: | 35 |
| Filter | |
| Filter stages: | 1 |
| Filter area in ft²: | 72 |
| Separation efficiency ≥: | 99.9 |
| Technology | |
| Motor power in hp: | 5.1 |
| Rated current in A: | 8.1 |
| Sound pressure level in dB(A): | 73 |
| Performance | |
| Max. fan capacity in cfm: | 165 |
| Extraction capacity at 18000 Pa in cfm: | 127 |
| Connections | |
| Air outlet in inches: | 3 |
| Connection nozzle Ø in inches: | 2 |
