VacuFil Compact

VacuFil Compact

Item No.: 82361
Non-stop operation
Laser , MIG/MAG
Steel , Aluminum , Stainless steel

For regular use with disposable filter

  • High levels of smoke and particles
  • Regular use

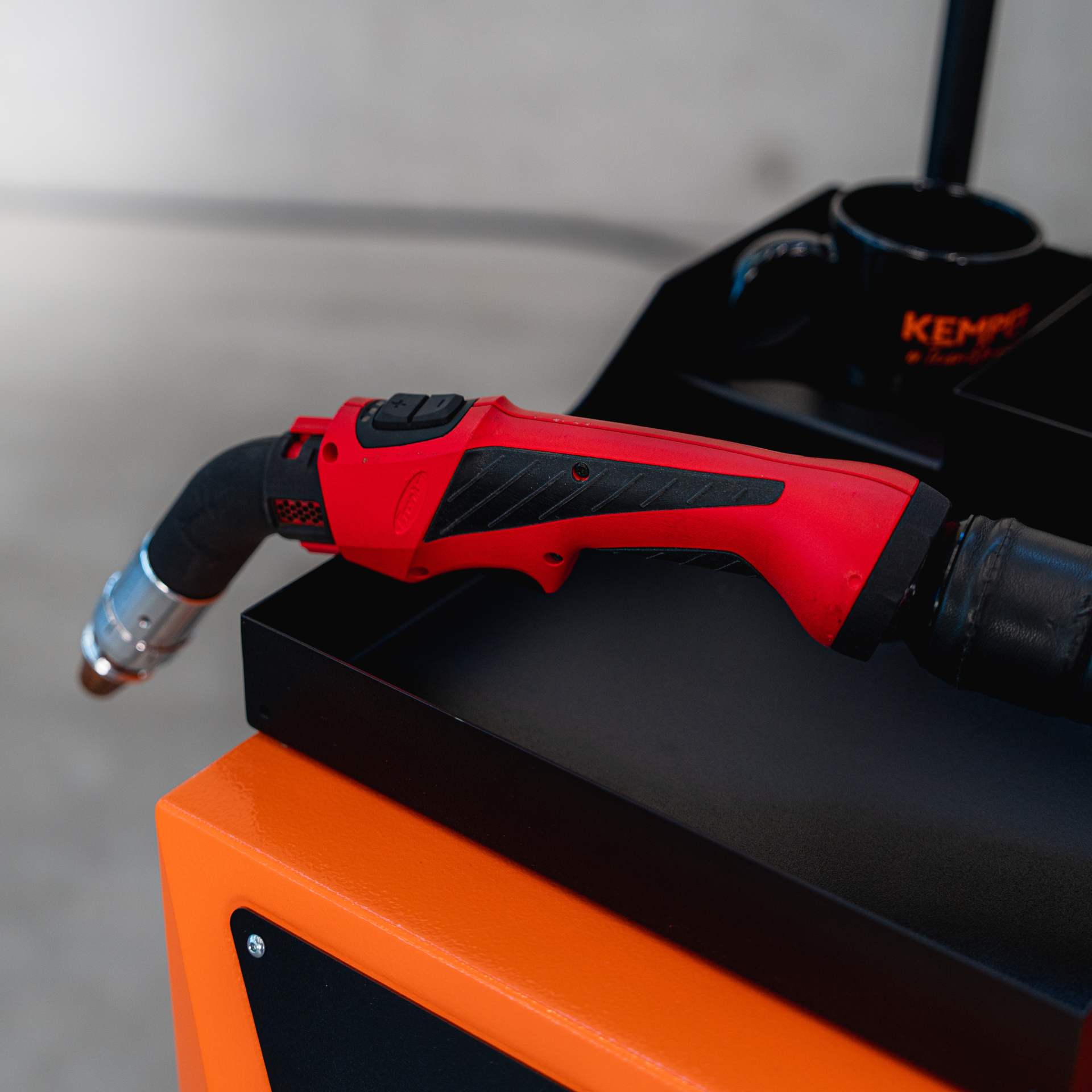

  • Torch extraction
  • Alternating work places

Price on request

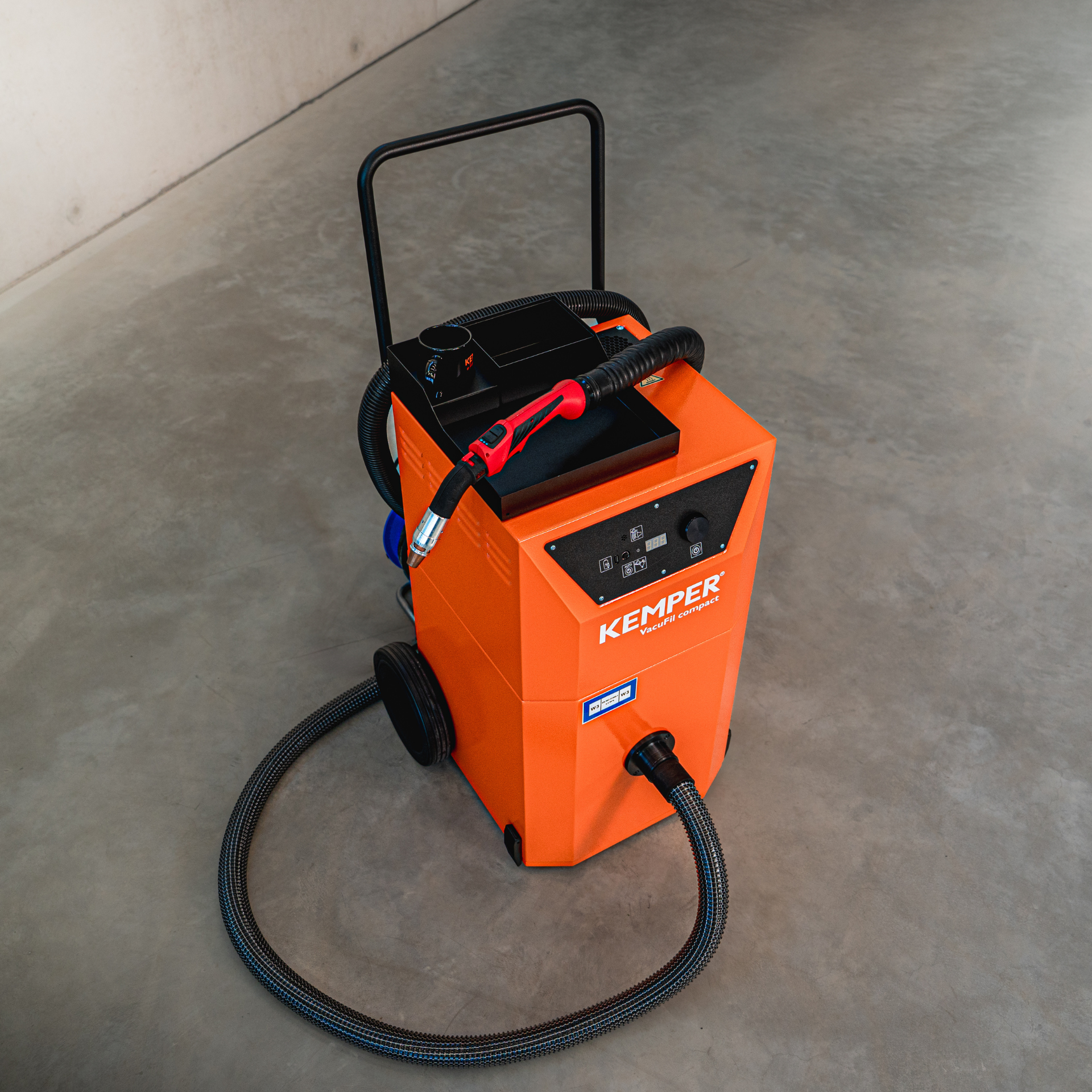

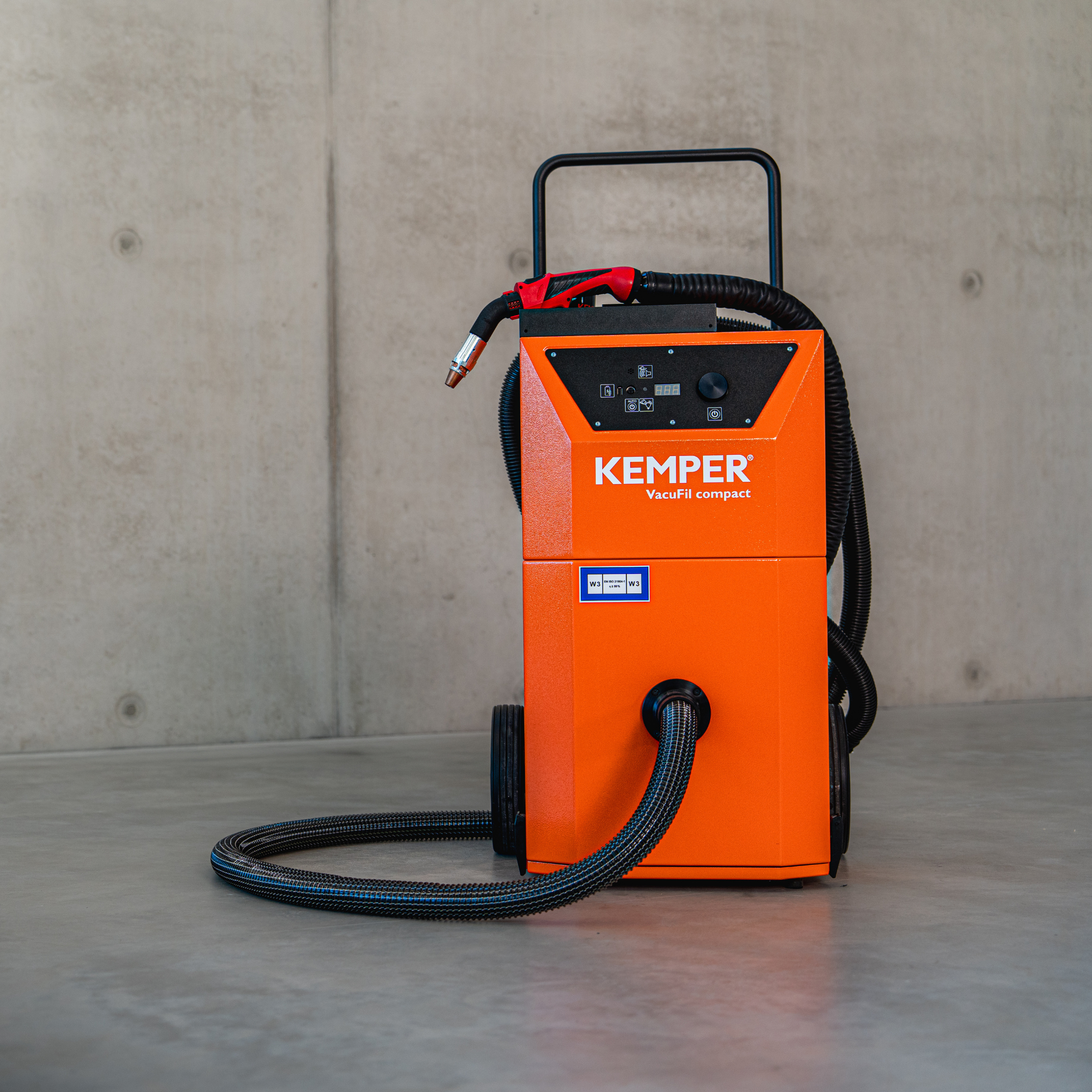

Efficient high-vacuum solution for reliable continuous operation

The high vacuum extraction unit VacuFil Compact is designed for medium quantities of welding fumes and dust. It has a large disposable filter and comfortable one-button operation, even with gloves. Many additional features such as automatic air volume control are available. The side channel blower for negative pressure provides robust performance for industrial users.

Maximum flexibility for every welding application

Powerful, flexible and easy to use, the VacuFil Compact delivers reliable high-vacuum extraction for a wide range of applications. The unit can also be upgraded for IoT use at a later stage with the KEMPER Connect Bridge and integrated into the KEMPER Connect IoT platform. Relevant operating, status and maintenance data is automatically transferred to KEMPER Connect. This gives you greater transparency regarding the condition and operation of your extraction unit.

Key benefits at a glance:

  • Infinitely variable extraction control for use with a wide range of extraction torches

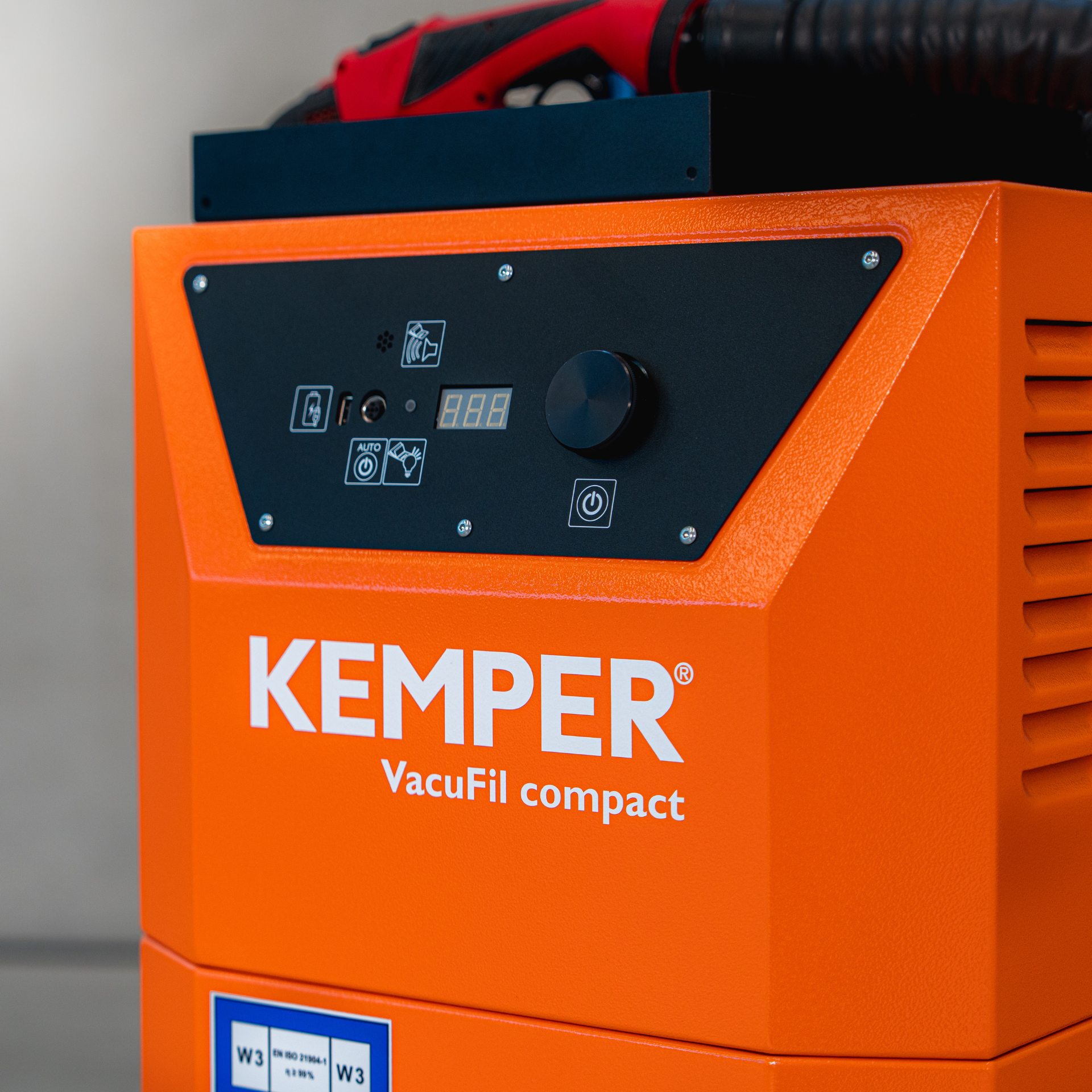

  • Intuitive one-button operation, even when wearing gloves
  • Excellent value for money with a wide range of optional equipment
  • High extraction performance thanks to a powerful side-channel blower
  • Well suited to changing workstations thanks to its compact design
  • IoT-ready at a later stage with the KEMPER Connect Bridge
  • Automatic transfer of relevant operating, status and maintenance data to KEMPER Connect

Find out more about KEMPER Connect →

Dimensions
Weight in lbs: 132
Dimensions (depth) in inches: 25
Dimensions (width) in inches: 23
Dimensions (height) in inches: 47
Filter
Filter stages: 1
Filter area in ft²: 72
Separation efficiency in % ≥: 99.9
Technology
Motor power in hp: 3
Rated current in A: 5.8
Connections
Air outlet in inches: 3
Connection nozzle Ø in inches: 2
Performance
Max. fan capacity in cfm: 129
Extraction capacity in cfm: 100
Max. extraction capacity in cfm: 170

Accessories

KEMPER Connect Bridge
KEMPER Connect Bridge
With the KEMPER Connect Bridge, selected KEMPER fume extraction and filtration systems can be retrofitted with IoT connectivity.Relevant operating, status, and maintenance data are automatically transmitted to KEMPER Connect.

$0.00*
H13 Filter for VacuFil Compact
H13 Filter for VacuFil Compact
The H13 HEPA filter reliably removes even the finest and most harmful particles with an efficiency of ≥ 99.95%.

$0.00*
High vacuum extraction hose - 8,2 ft
High vacuum extraction hose - 8,2 ft
Medium-duty PVC extraction hose for extraction systems, laser technology, and mechanical and plant engineering.

$0.00*
High vacuum extraction hose - 16 ft
High vacuum extraction hose - 16 ft
Medium-duty PVC extraction hose for extraction systems, laser technology, and mechanical and plant engineering.

$0.00*
High vacuum extraction hose - 32,8 ft
High vacuum extraction hose - 32,8 ft
Medium-duty PVC extraction hose for extraction systems, laser technology, and mechanical and plant engineering.

$0.00*
Funnel nozzle
Funnel nozzle
Funnel nozzle, width 150 mm, flexible with magnetic base

$0.00*
Funnel nozzle, round
Funnel nozzle, round

$0.00*
Automatic Start-Stop
Automatic Start-Stop

$0.00*
Slit nozzle 300 mm
Slit nozzle 300 mm
Slit nozzle, 300 mm, with magnetic foot

$0.00*
Slit nozzle 600 mm
Slit nozzle 600 mm
Slit nozzle, 600 mm, with magnetic foot

$0.00*
Volume flow control for VacuFil Compact
Volume flow control for VacuFil Compact

$0.00*
Tool tray with cup holder for VacuFil Compact
Tool tray with cup holder for VacuFil Compact
With magnetic fixation without screw connection

$0.00*

Wear parts

Pre-filter mat
Pre-filter mat
Pre-filter mats with easy and quick installation and high dust capacity (10 per set)

$0.00*
Replacement filter for VacuFil Compact
Replacement filter for VacuFil Compact
Original KEMPER replacement filter cartridge as storage filter with 6.7 m² filter surface for the VacuFil Compact extraction unit. The filter material consists of a PE-M membrane with a degree of separation of ≥ 99.9 % against welding fumes. Important note: The warranty of your unit is only valid if original filters are used

$0.00*
Single-use disposal container for VacuFil Compact
Single-use disposal container for VacuFil Compact
Single-use disposal container for VacuFil Compact with 6 L capacity

$0.00*
Replacement filter for VacuFil Compact
Replacement filter for VacuFil Compact

$0.00*

Service

Garantiezeitverlängerung auf 24 Monate
Garantiezeitverlängerung auf 24 Monate
Für Ihr KEMPER Absaug- und Filtergerät12 Monate Anschlussgarantie an die gesetzliche Gewährleistungsfrist für Ihr KEMPER Absaug- und Filtergerät auf insgesamt 24 Monate. Die Anschlussgarantie ist für Seriengeräte kostenlos, die bei Auslieferung über eine Produktregistrierungskarte verfügen und registriert wurden. Voraussetzung für die Anschlussgarantie ist, dass während der Laufzeit die gesetzlich vorgeschriebenen Sicherheitsüberprüfungen durchgeführt werden und bei Wartung- oder Serviceeinsätzen original Ersatzteile verwendet werden.

$0.00*
Garantiezeitverlängerung auf 36 Monate
Garantiezeitverlängerung auf 36 Monate
Für Ihr KEMPER Absaug- und Filtergerät24 Monate Anschlussgarantie an die gesetzliche Gewährleistungsfrist für Ihr KEMPER Absaug- und Filtergerät auf insgesamt 36 Monate. Die Anschlussgarantie wird in Kombination mit einem Servicevertrag beauftragt.

$0.00*
