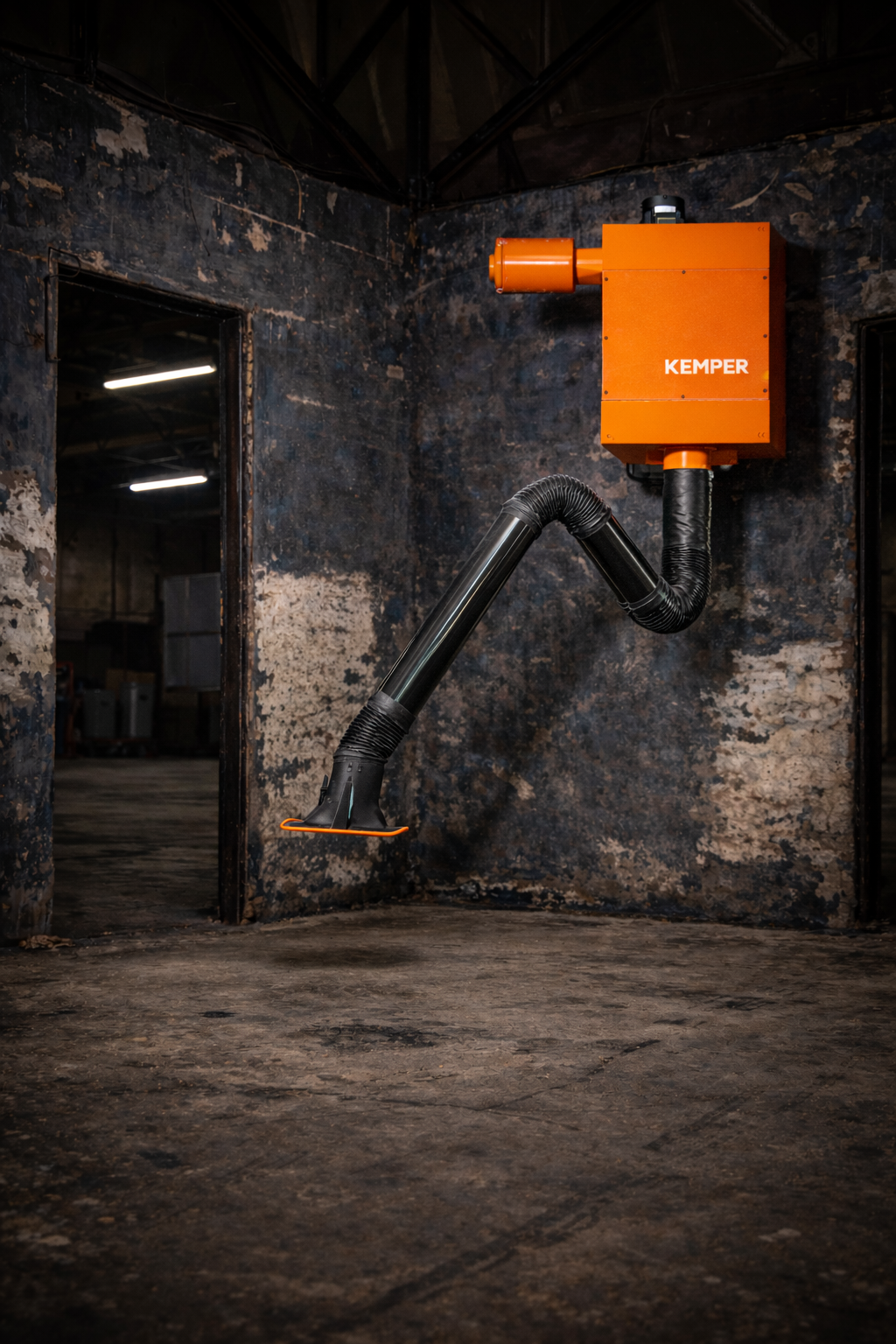

Welding Fume Cartridge Filter Unit Stationary 1 arm
Extraction unit with one exhaust arm for continous use and cleanable filter for welding smoke
- High levels of smoke and particles
- Non-stop operation
€5,960.00* plus VAT

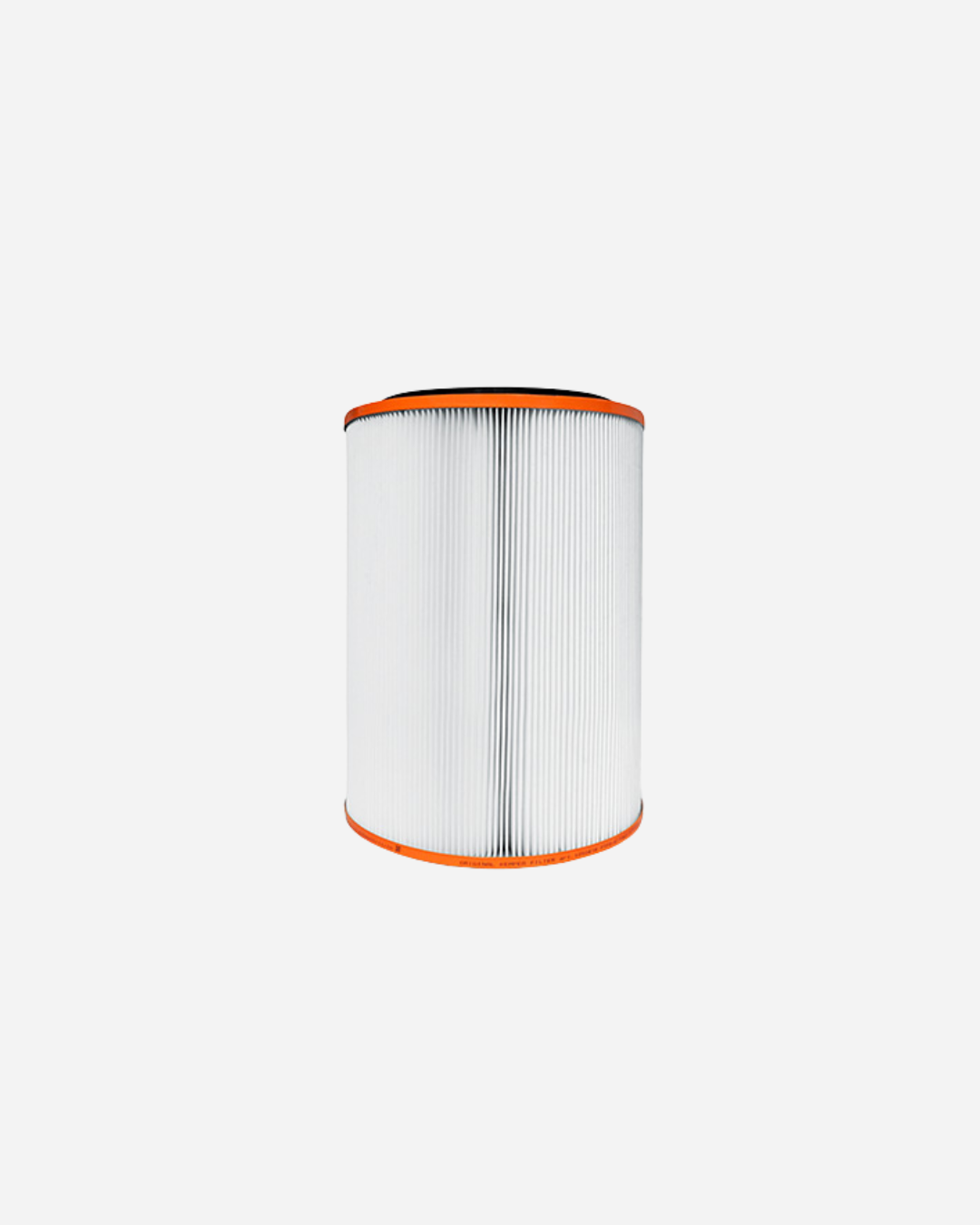

Due to its differential pressure-controlled, automatic filter cleaning system, the stationary cartridge filter for welding fume extraction is suitable for high levels of smoke and dust and non-stop operation with low operating costs. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. The two-exhaust arm version with integral dampers allows simultaneous or alternating work in two places with adjustable extraction performance
Powerful filter technology for continuous operation. The highlights at a glance:
- High efficiency due to automatic filter cleaning
- Less need to adjust the exhaust arm due to flow-optimised exhaust hood design
- Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
- Low air consumption due to differential pressure-controlled cleaning
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 1 |
| Filter area in ft²: | 86 |
| Separation efficiency in % ≥: | 99.9 |
| Dimensions | |
| Dimensions (depth) in inches: | 26 |
| Dimensions (width) in inches: | 26 |
| Dimensions (height) in inches: | 53 |
| Technology | |
| Motor power in hp: | 2 |
| Rated current in A: | 3.5 |
| Sound pressure level in dB(A): | 71 |
| Connections | |
| Number of extraction arms: | 1 |
| Extraction arm diameter in inches: | 6 |
| Power supply: | 3 x 400 V / 50 Hz |
