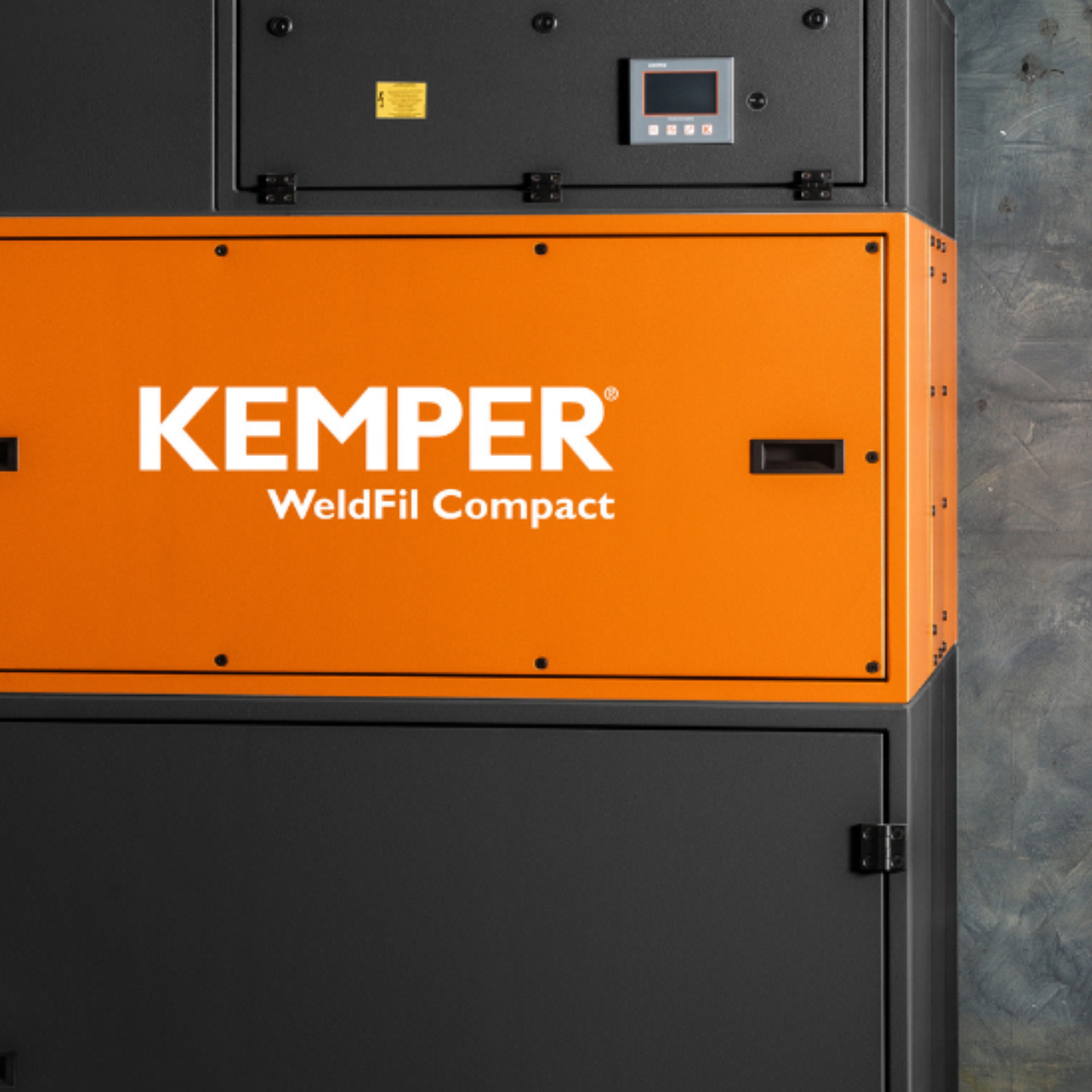

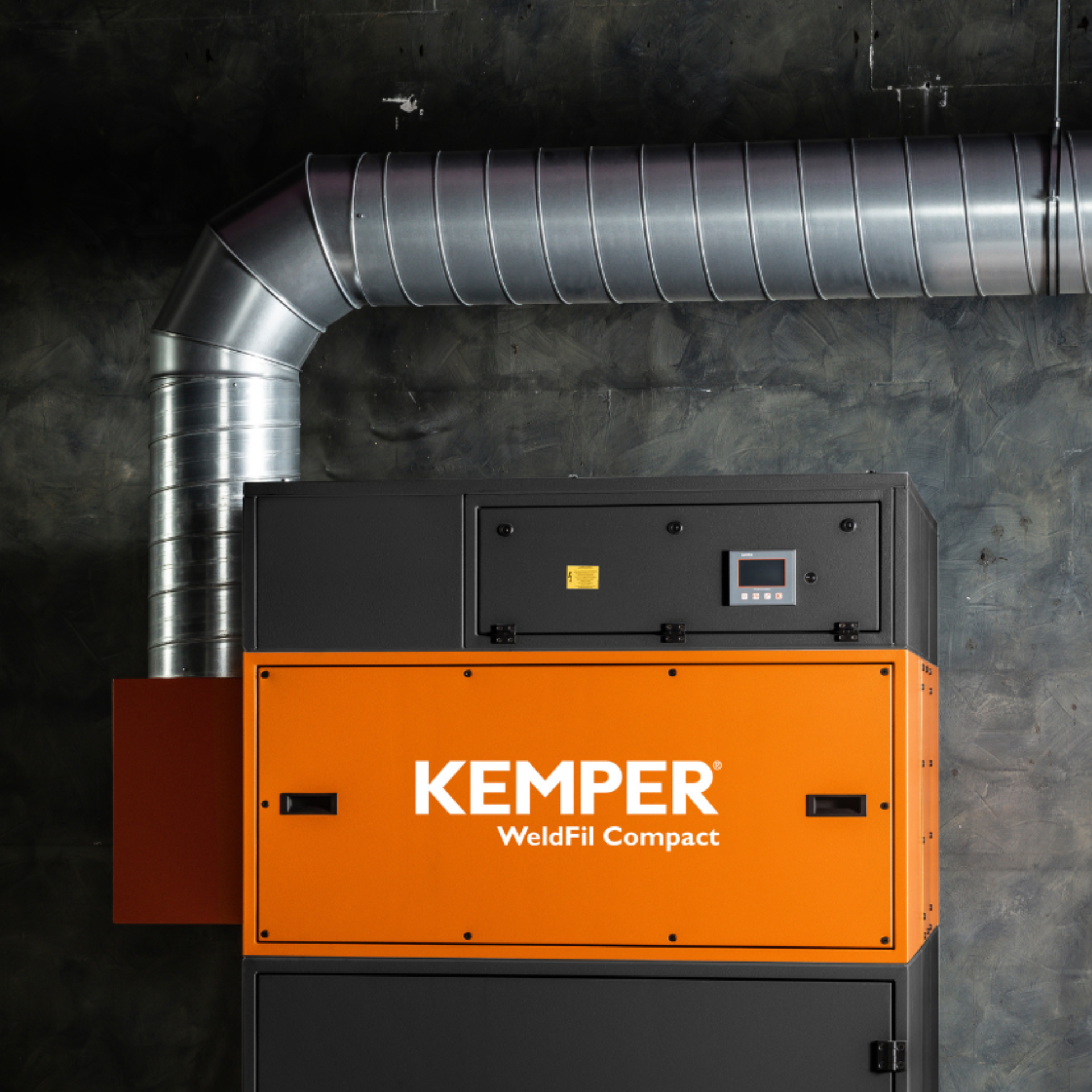

Welding Fume Extraction Unit WeldFil Compact
Welding smoke extraction system - Plug and play - ready to use
- High levels of smoke and dust
- Welding and grinding shops
- Training centres and robotic welding lines
- Laser, plasma and flame cutting systems
- Can be installed outdoors
Price on request

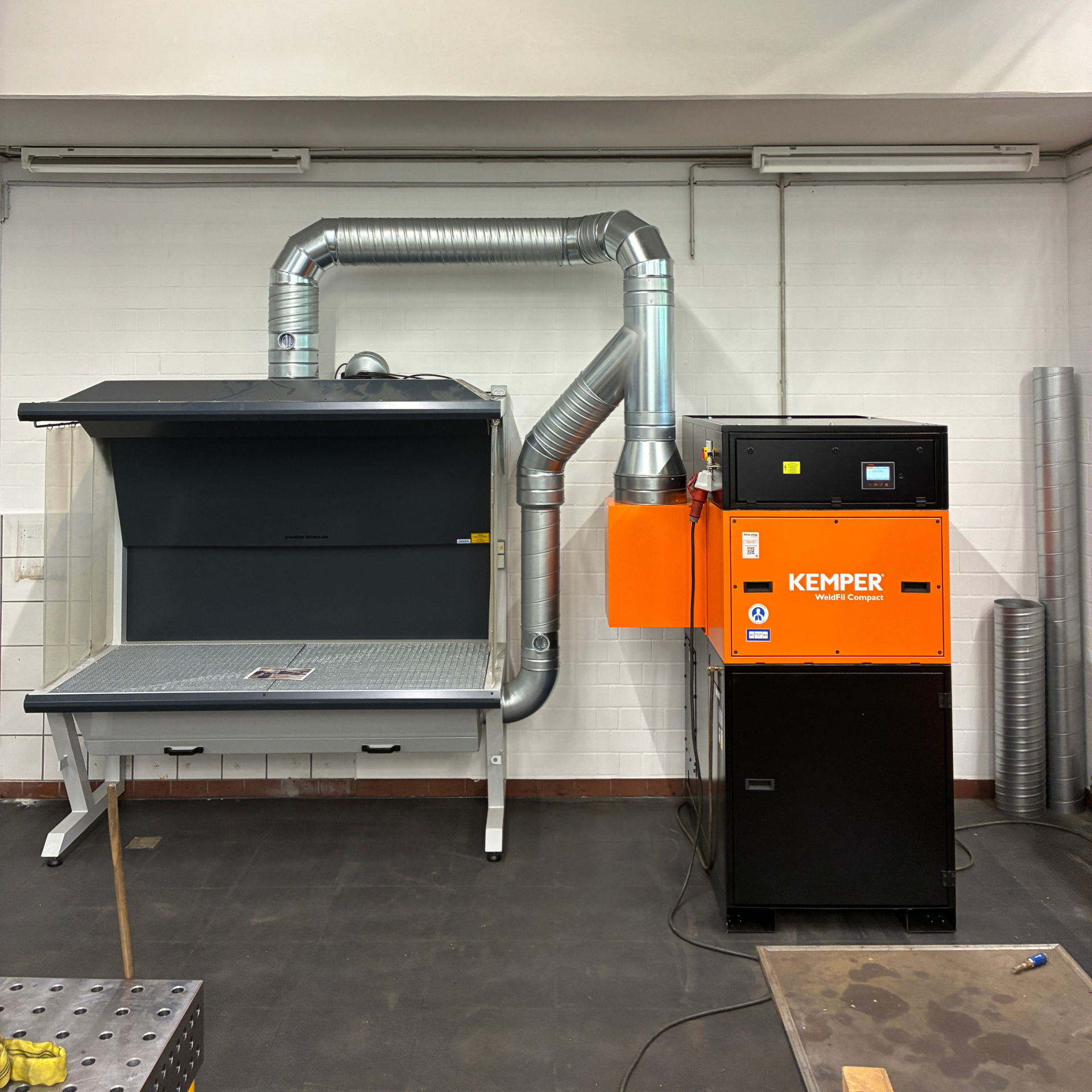

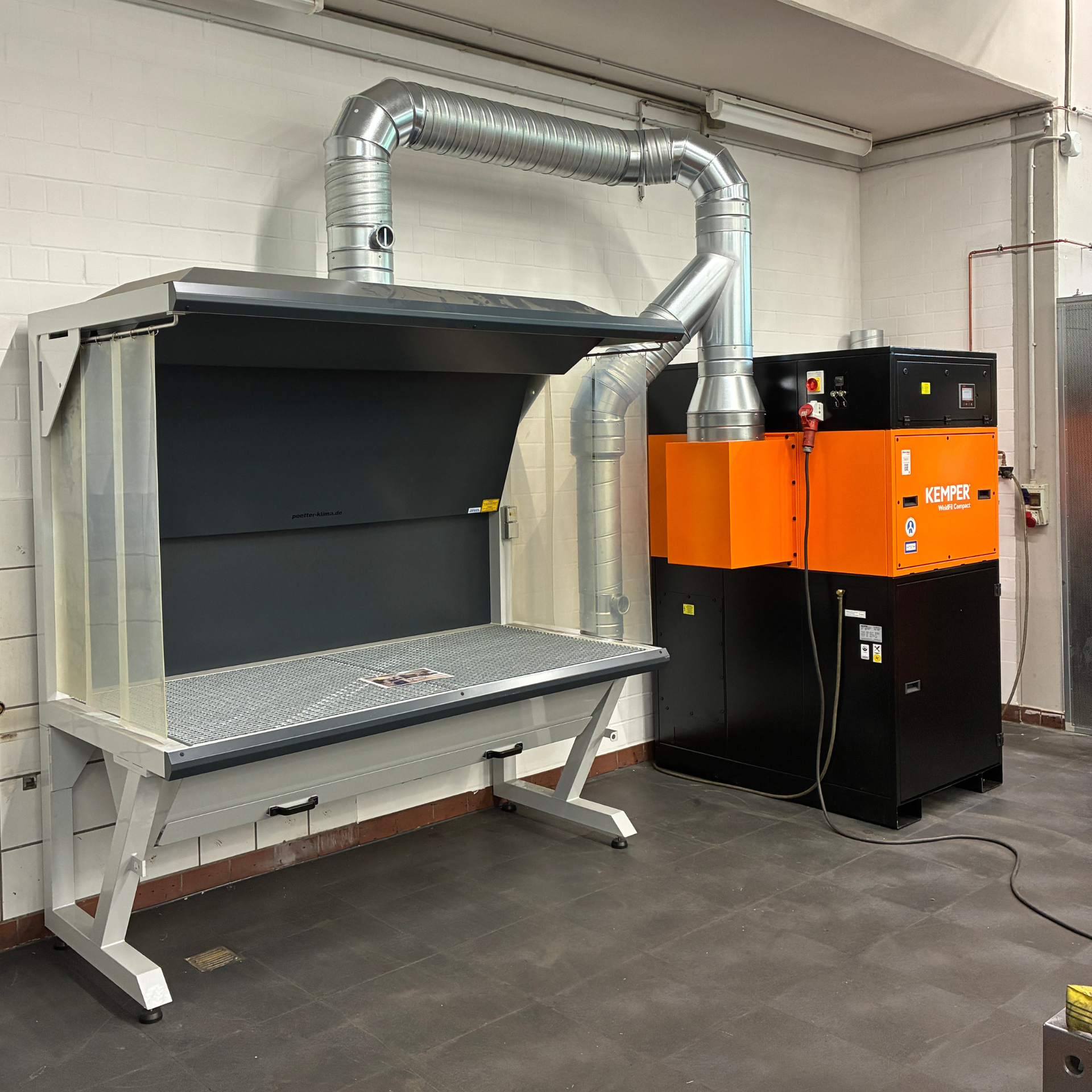

The solid yet compact welding smoke extraction system is ideally suited for factory buildings and welding shops with high levels of smoke and dust. Supplied ready to plug in and equipped with forklift pockets and lifting eyes, the WeldFil Compact is quickly installed as a central extraction and filter system for multiple welding work stations, cutting machines and welding robots. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm, and due to the W3/IFA Certification, the extraction filter unit WeldFil Compact is also suitable for use when machining chromium-nickel steel.
Efficient, quiet and designed for demanding multi-station operation. The highlights at a glance:
- Contamination-free dust collection due to compressed air fixation of dust collection containers
- Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
- Little noise emission due to a low noise level
- Considerable energy cost savings by using the automatic extraction volume control
- Convenient operation due to intelligent control via touch screen with diagnostic system
- Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
- Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 1 |
| Filter area in ft²: | 215 |
| Number of filter elements: | 5 |
| Total filter area in ft²: | 1076 |
| Separation efficiency ≥: | 100 |
| Connections | |
| Air inlet in inches: | 18 |
| Air outlet in inches: | 22 |
| Dimensions | |
| Dimensions (depth) in inches: | 56 |
| Dimensions (width) in inches: | 56 |
| Dimensions (height) in inches: | 110 |
| Weight in lbs: | 2161 |
| Technology | |
| Motor power in hp: | 10 |
| Rated current in A: | 13.7 |
| Sound pressure level in dB(A): | 65 |
