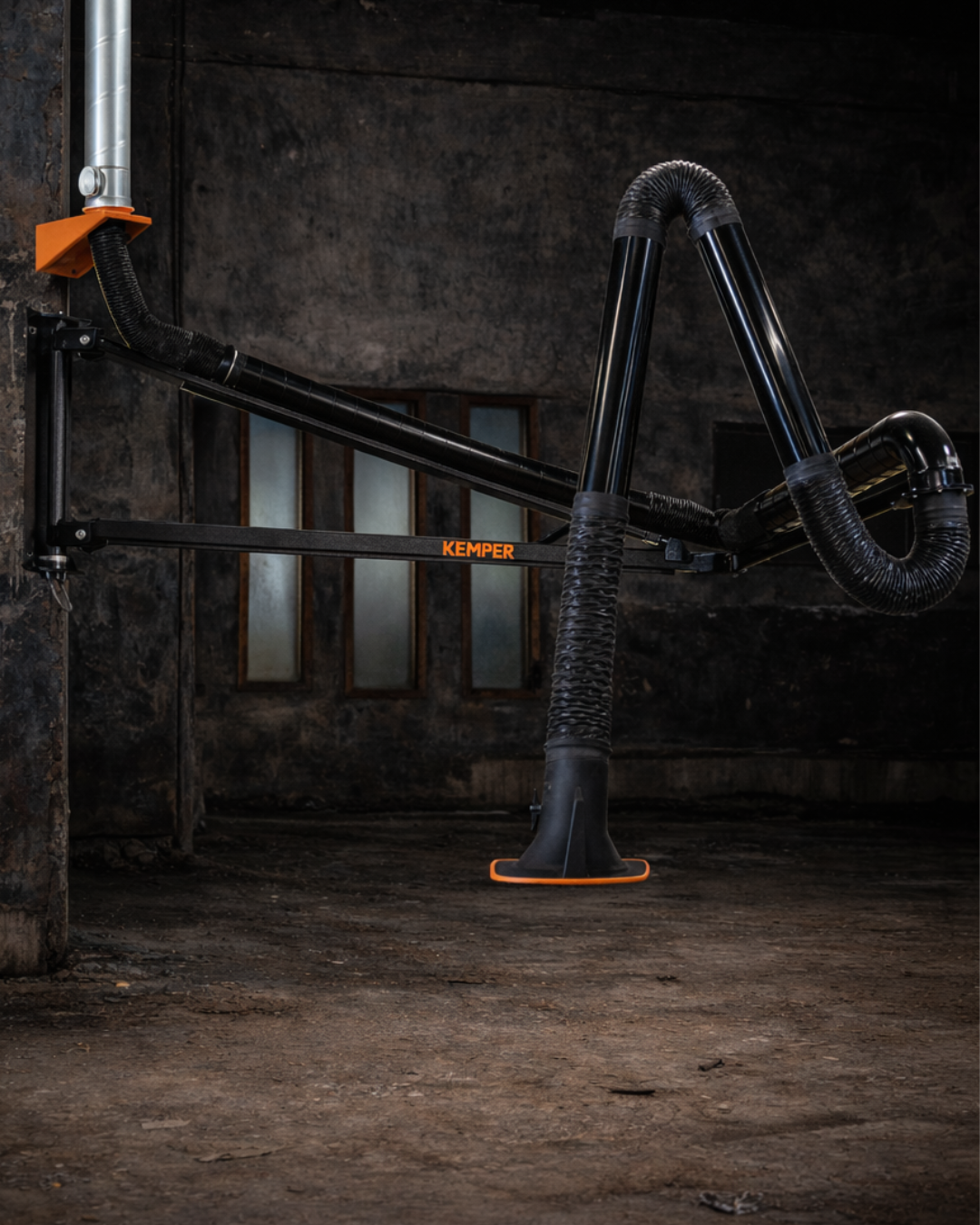

Exhaust Arm 3 Joints
Work flexibly - exhaust arms with a reach of up to 8 meters
- For connection to fans or central extraction systems
- High levels of smoke and particles
- Non-stop operation
- Welding fumes, gases, vapours, light dusts
- Large workpieces
£3,616.00* plus VAT
The KEMPER extraction arm permits a long reach. It is used either for a single work station in conjunction with a fan or for multi-user stations using tubes connected to a central extraction and filter system. The exhaust arm is designed for continuous use and is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or motor vehicle exhaust fumes.
Efficient extraction with maximum flexibility – thoughtfully designed down to the smallest detail for noticeably easier working. The highlights at a glance:
- Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage

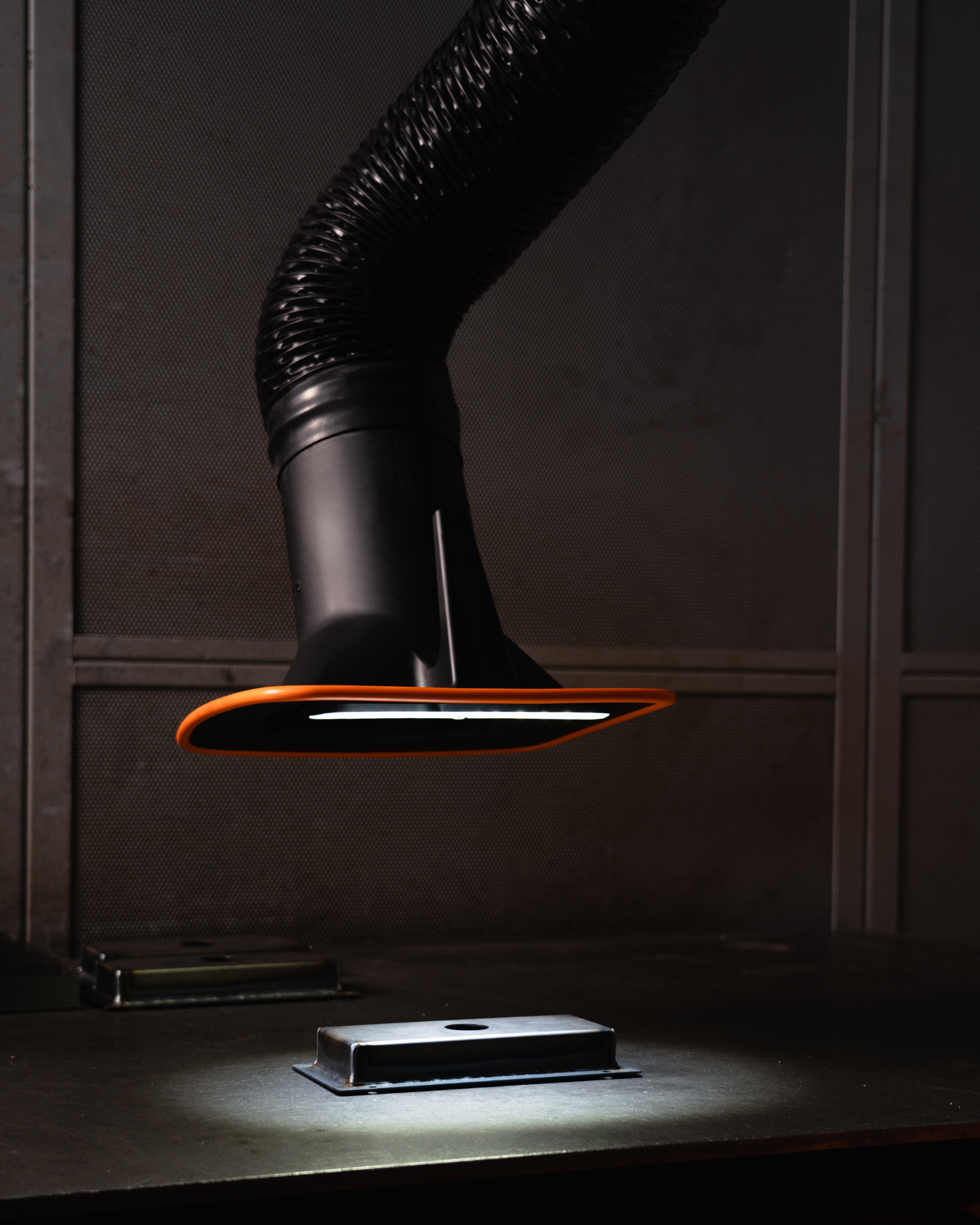

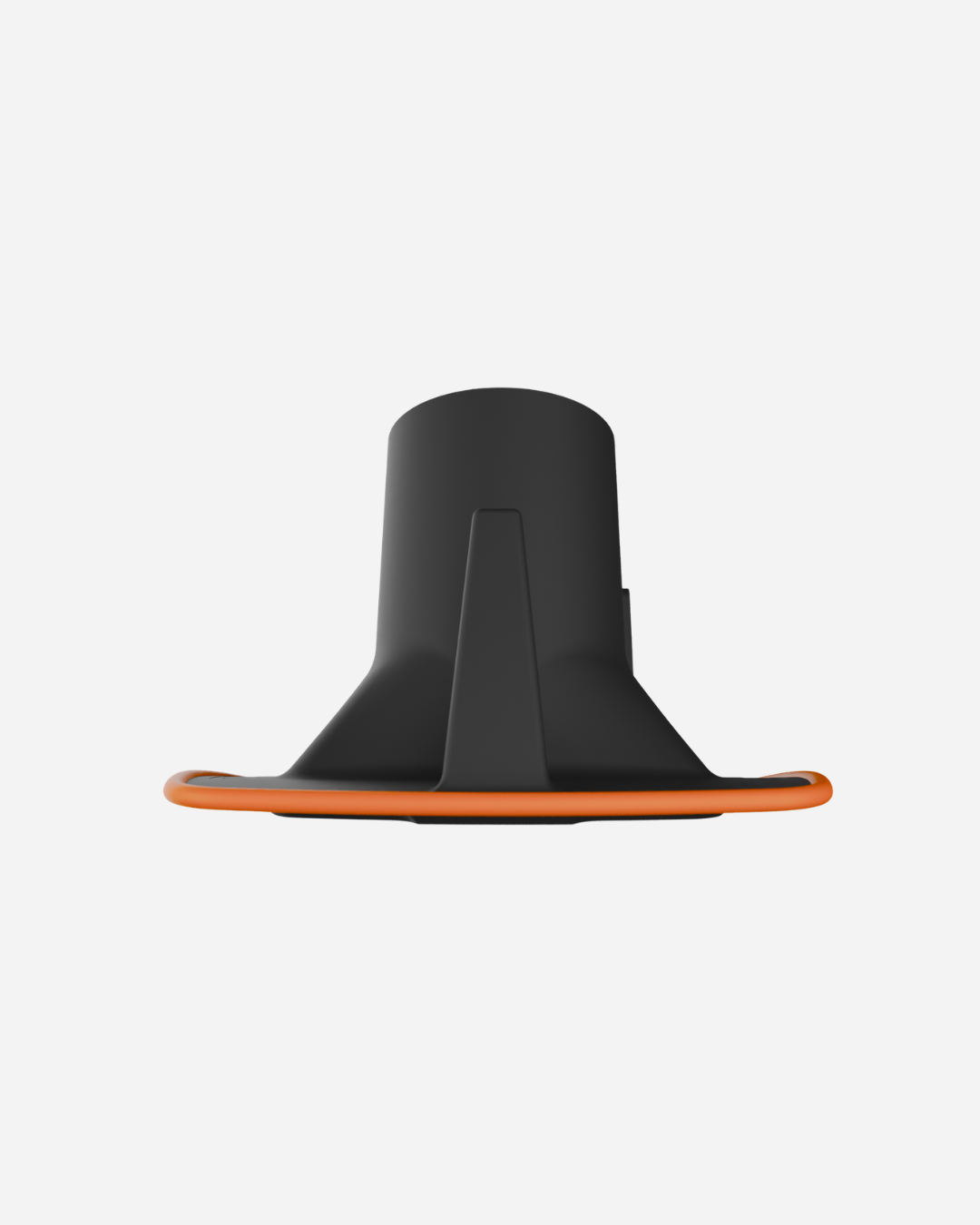

- 40% less adjustment of the exhaust arm needed due to exhaust hood design
- User-friendly due to particularly smooth movement of the hood with one hand
- Arm keeps position due to self-supporting design
- Due to its easy movement, the exhaust arm can be brought into any permanent position with one hand
- Fast operation due to long reach and particularly flexible adjustment
- Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
| Technical data | |
|---|---|
| Technology | |
| Number of joints: | 3 |
| Connections | |
| Extraction arm diameter in mm: | 150 |
| Dimensions | |
| Length in mm: | 3000 |
| Weight in kg: | 142 |
| Boom length in m: | 4 |
| Overall length in m: | 7 |
Accessories
