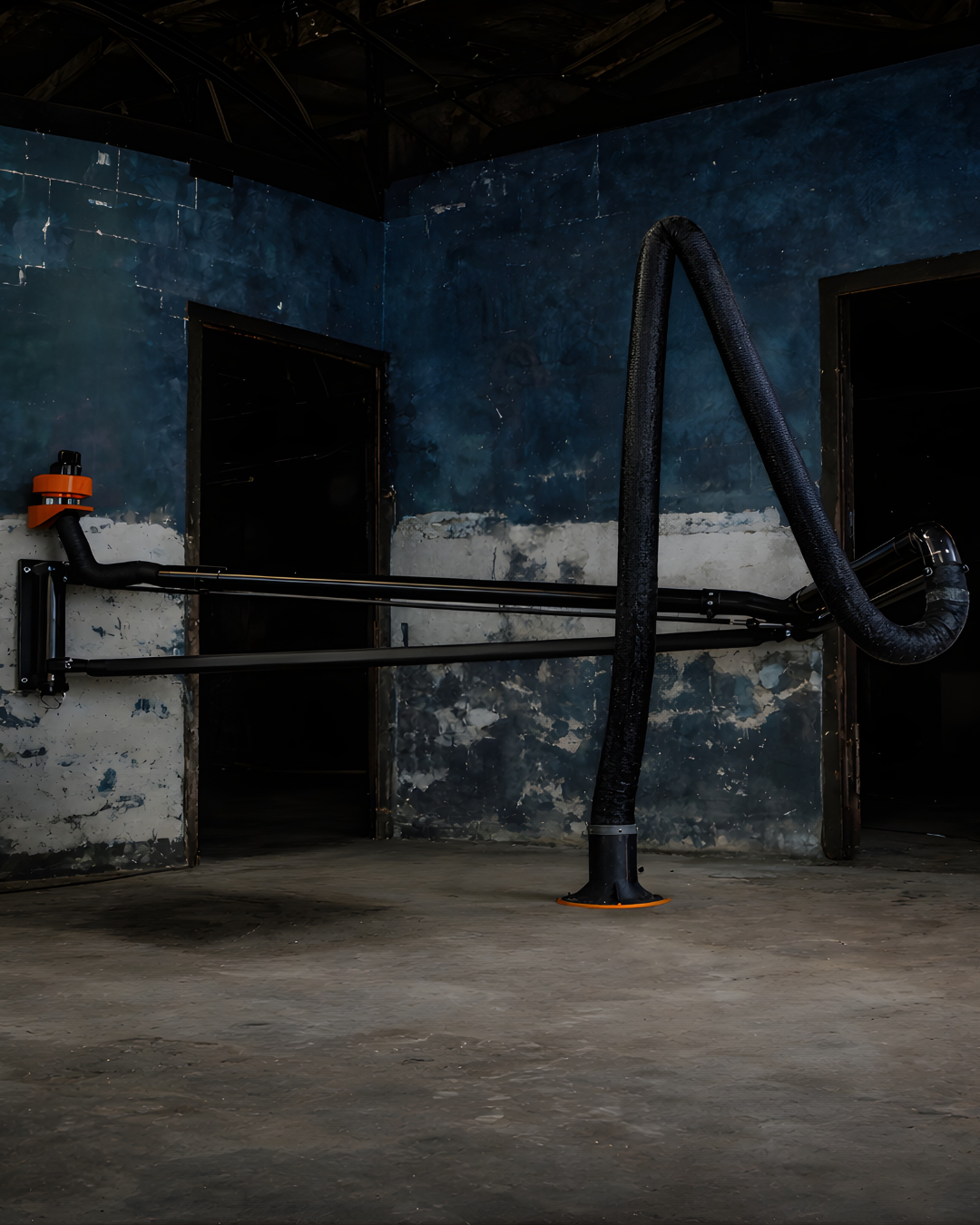

Exhaust Set Eco 7-10 m
Welding smoke exhaust set with extraction arm and fan
- High levels of smoke and particles
- Non-stop operation
- Where filtration is not essential
- Welding fumes, gases, vapours, light dusts
£5,935.00* plus VAT
The welding fume exhaust kit Eco consisting of exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation.
More efficiency, less effort – quiet, energy-efficient and future-proof for comfortable working with minimal repositioning. The highlights at a glance:
- Significantly quieter and more energy-efficient thanks to new eco fans with optimized airflow technology
- User-friendly due to particularly smooth movement of the hood with one hand
- Arm keeps position due to self-supporting design

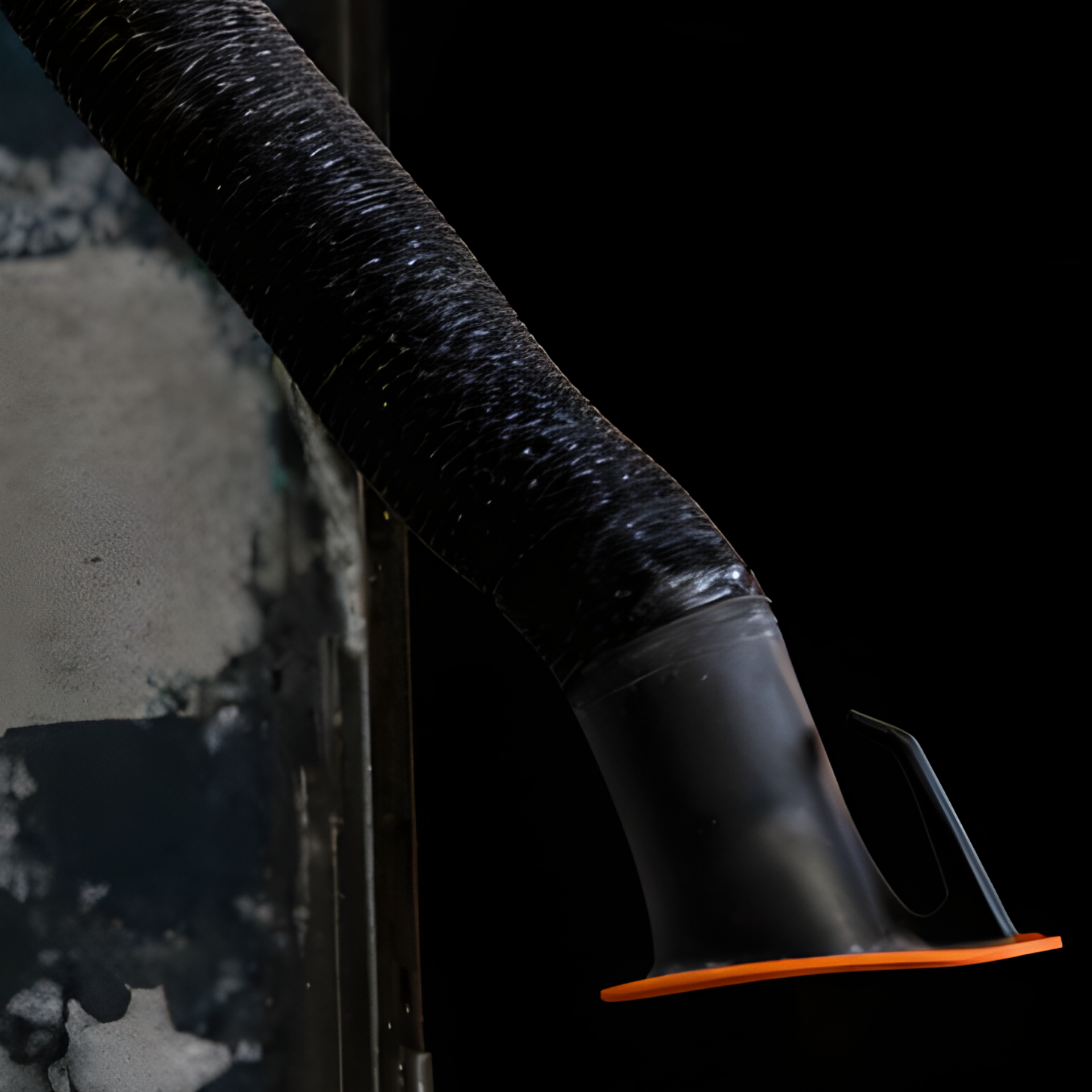

- Less adjustment of the extraction arm thanks to the flow-optimized design of the new hood The Hood
- Reliable and ready for the future – meets today’s and tomorrow’s EU standards
| Technical data | |
|---|---|
| Dimensions | |
| Weight in kg: | 235 |
| Length in mm: | 3000 |
| Boom length in m: | 6 |
| Overall length in m: | 9 |
| Connections | |
| Diameter in mm: | 150 |
| Extraction arm diameter in mm: | 150 |
| Technology | |
| Motor power in kW: | 0.8 |
| Number of joints: | 3 |
| Sound pressure level in dB(A): | 65 |
| Performance | |
| Extraction capacity in m³/h: | 1100 |
| Max. negative pressure in Pa: | 1930 |
