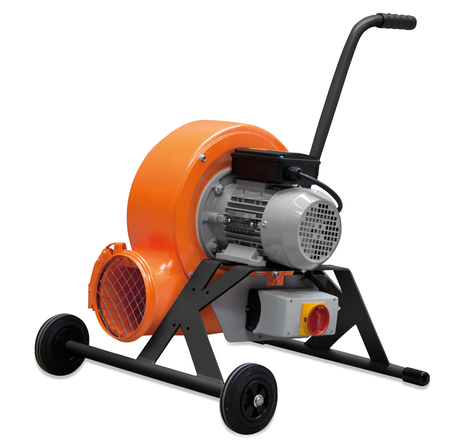

Welding Smoke Exhaust Fan Eco
For exhaust arms and telescopic exhaust arms
A universal, mobile solution for a variety of ventilation applications where filtering the air is not important. It is extremely quiet and is suitable for the extraction of e.g. welding fumes or car exhaust gases as well as for the fresh air ventilation of containers, pipes or manholes.
Product variants:
- High levels of smoke and particles
- Non-stop operation
- For ventilation and extraction
- High flexibility since blower can be used both for ventilation and extraction
- Significantly quieter and more energy-efficient thanks to new eco fans with optimized airflow technology
- Spark-proof and robust die-cast aluminum housing ensures high operational safety
- Ideal for mobile or stationary use, for example on construction sites or in workshops
- Compatible with exhaust hoses in Ø 100 mm, Ø 150 mm, Ø 160 mm
- Improved energy efficiency and reduced noise level for more comfortable working conditions
- Housing and fan made of die-cast aluminum.
- Stepless and maximum performance thanks to integrated KEMPER Eco fans
- Portable and mobile for maximum mobility
- Datasheet (131.79 KB)
Basic data
Air flow rate (max.)
1650 m³/h
Max. pressure increase
2100 Pa
Dimensions (w x t x h)
600 x 600 x 750 mm
Weight
35 kg
Motor power
0,75 kW
Power supply
1 x 230 V / 50 Hz
Noise level
63.5 dB(A)
Additional information
Fan type
Radial fan
Hose connection
Ø 160 mm
Efficiency level (EU Ecodesign Regulation)
N = 71,0
*All prices are excluding VAT and carriage costs. Our offered products are directed exclusively to commercial businesses.
